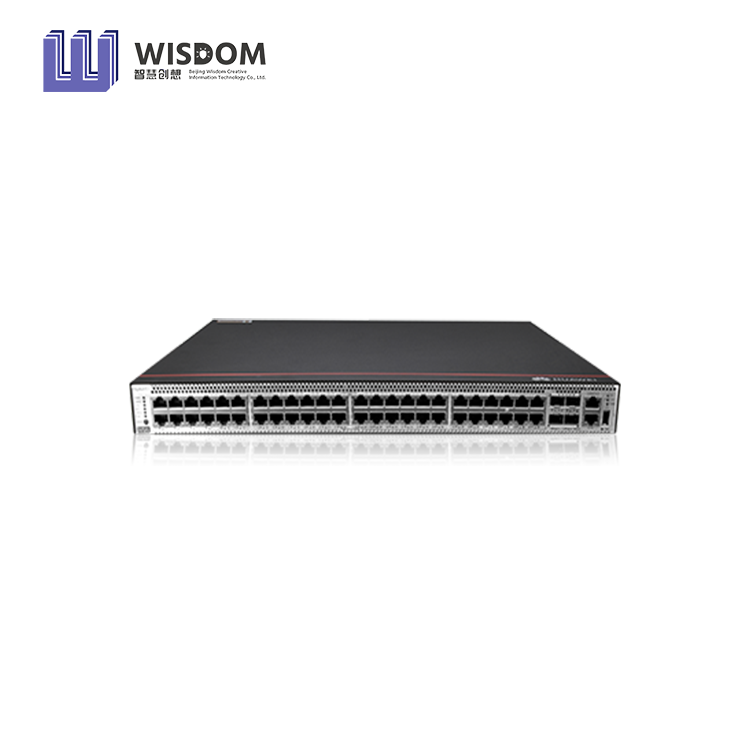

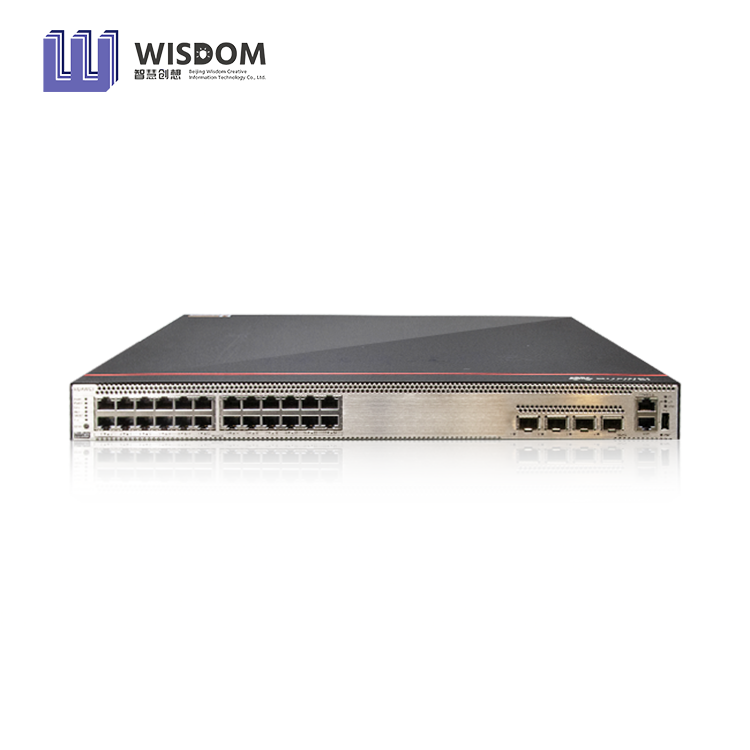

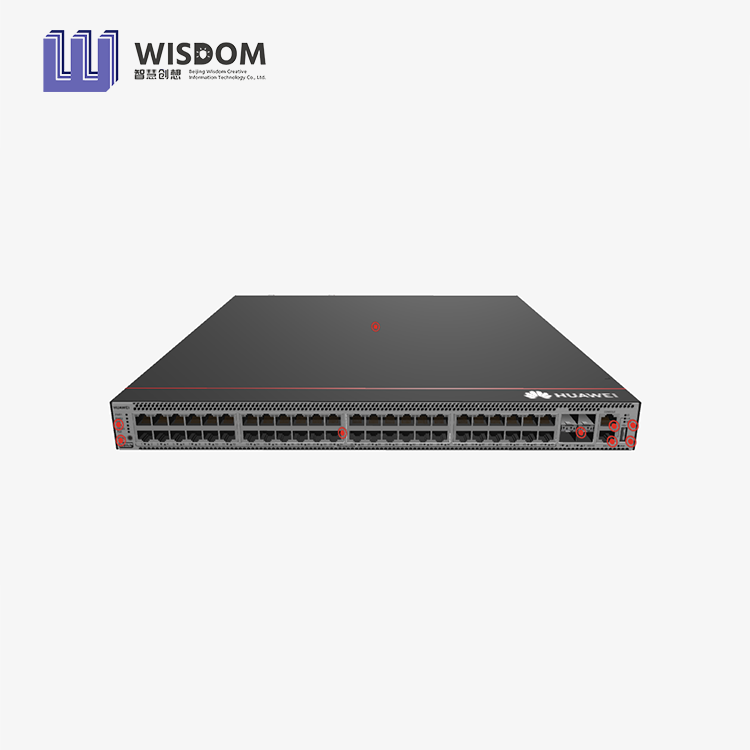

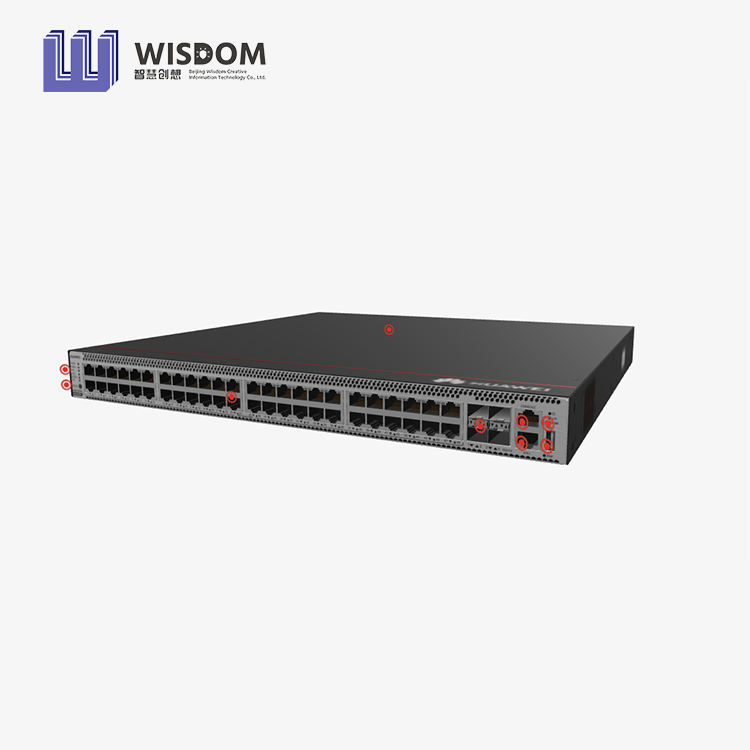

Huawei CloudEngine S5736-S Series Multi-GE Switches

Unleash the potential of Wi-Fi 6.

Description
Product Parameters

huawei cloudengine s5736 s series multi ge switches-2

+86-18600585382

[email protected]

Description

Product description

The CloudEngine S5736-S series of next-generation standard full Gigabit Ethernet switches provide 24-port PoE/non-PoE, 48-port PoE/non-PoE, and four 10GE ports in the uplink, as well as an expansion card slot.

Based on new-generation high-performance hardware and Huawei's unified VRP Versatile Routi ng Platform (VRP) software platform, the CloudEngine S5736-S series of switches features enhanced Layer 3 features, easy operation and maintenance, flexible Ethernet networking, and mature IPv6 features, and is widely used in various industries such as healthcare, retail, mining, and Internet.industries, such as healthcare, retail, mining, Internet, etc.

Feature

Rich Business Functions

The device supports Layer 3 features such as OSPF, ISIS, BGP, VRRP, etc. to meet the application requirements of voice, video and data services.

Powerful power supply

The single port supports up to 90W PoE++ power supply, which can provide super power supply for PD devices, and the matching remote module can realize secondary PoE.

Intelligent operation and maintenance of the entire network

It supports Telemetry to collect device data in real time, and works with the campus network analyzer to discover network problems in time and safeguard user experience.

Product Parameters

	CloudEngine S5736-S24T4XC	CloudEngine S5736-S24U4XC	CloudEngine S5736-S48T4XC	CloudEngine S5736-S48U4XC
Dimensions (W x D x H)	44242043.6MM	44242043.6MM	44242043.6MM	44242043.6MM
Chassis height [U]	1U	1U	1U	1U
Exchange capacity	1.28 T/12.8 Tbps	1.28 T/12.8 Tbps	1.28 T/12.8 Tbps	1.28 T/12.8 Tbps
Packet forwarding rate	426 Mpps	426 Mpps	462 Mpps	462 Mpps
fixed port	24 Gigabit Ethernet ports, 4 10Gb SFP+ ports	24 Gigabit electrical ports , 4 10Gb SFP+, PoE++	48 Gigabit Ethernet ports, 4 10GbE SFP+ ports	48 Gigabit ports , 4 10Gb SFP+, POE++
expansion slot	1 expansion slot, supports 225GE or 810GE optical, 240GE optical, 440GE optical daughter cards
full complementary weight	8kg	8.1kg	8.2kg	8.3kg
Rated Input Voltage [V]	AC input (150W AC):100-240VAC; 50/60Hz Dc input (180WDC):-48 to -60VDC	Ac input (1000WPOEAC):100-240VAC; 50/60HZ High voltage DC input (1000WPOEAC):240VDC	AC input (150W AC):100-240VAC; 50/60Hz Dc input (180WDC):-48 to -60VDC	Ac input (1000WPOEAC):100-240VAC; 50/60HZ High voltage DC input (1000WPOEAC):240VDC
Maximum voltage	AC input (150W AC):90-290VAC; 45HZ-65HZ DC input (180W DC):-38.4 to -72VDC	Ac input (1000W POEAC):90-290VAC; 45HZ-65HZ HVDC input (1000WPOEAC):190-290V DC(meets 240V HVDC certification)	Ac input (150WAC):100-240VAC:50/60Hz DC input (180WDC):-48 to -60V DC	Ac input (1000WPOEAC):90-290VAC; 45HZ-65HZ HVDC input (1000WPOEAC):190-290VDC(meets 240V HVDC certification)
operating temperature [°C]	-5°C~+45°C	-5°C~+45°C	-5°C~+45°C	-5°C~+45°C
Storage temperature [°C]	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃	-40℃~+70℃
Long-term working environment relative humidity [RH]	5%RH to 95%RH, non-condensation	5%RH to 95%RH, non-condensation	5%RH to 95%RH, non-condensation	5%RH to 95%RH, non-condensation
Heat dissipation method	Air-cooled heat dissipation, intelligent speed regulation	Air-cooled heat dissipation, intelligent speed regulation	Air-cooled heat dissipation, intelligent speed regulation	Air-cooled heat dissipation, intelligent speed regulation
