Lenovo ThinkSystem SR780a V3 5U Rack Server

With dual 5th Gen Intel® Xeon® Scalable processors, the ThinkSystem SR780a V3 offers the performance needed for compute-demanding AI and HPC tasks. It supports ample DDR5 memory, NVMe drives, and PCIe Gen5 slots to speed results.

  • Description
  • Product Parameters

Expanding Compute for AI and HPC

With dual 5th Gen Intel® Xeon® Scalable processors, the ThinkSystem SR780a V3 offers the performance needed for compute-demanding AI and HPC tasks. It supports ample DDR5 memory, NVMe drives, and PCIe Gen5 slots to speed results.

When developing your own AI platform, or providing AI resources via the cloud, the ThinkSystem SR780a V3 delivers unparalleled compute power in a dense, compact, 5U package. Model development, training, generative AI development and large HPC simulations can all benefit from the longer sustained performance of the ThinkSystem SR780a V3.

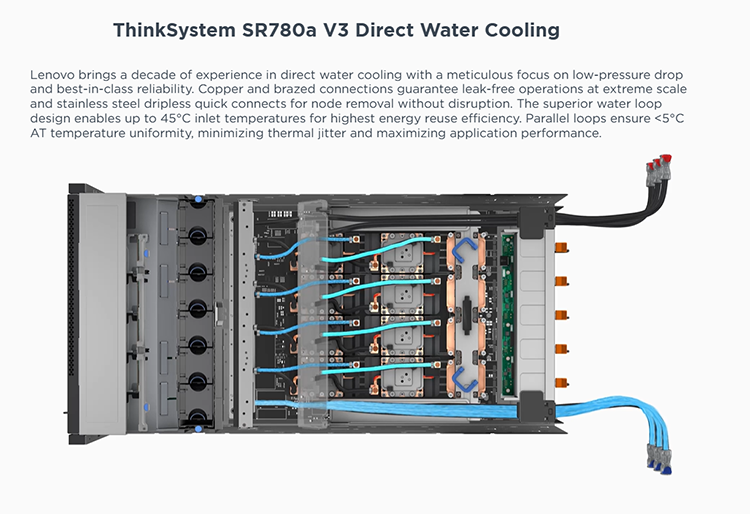

Performance Driven by Liquid-Cooling

Data centers must excel in performance while meeting energy constraints. Lenovo's innovation is evident in the ThinkSystem SR780a V3, prioritizing energy efficiency. By using Neptune™ liquid cooling instead of traditional air cooling, you boost performance while staying within energy thresholds.

Neptune™ liquid cooling improves efficiency by removing up to 95% of heat and allows the compact 5U form factor for the ThinkSystem SR780a V3.

Ultimate Acceleration

Designed for peak GPU performance, the ThinkSystem SR780a V3 harnesses maximum acceleration with 8 NVIDIA GPUs interconnected via high-speed NVLink.

Built for AI tasks like LLM, machine learning, model training, and demanding HPC workloads. NVIDIA H200 Tensor Core GPU platforms drive unmatched acceleration across all scales, fueling top-tier elastic data centers worldwide for AI and HPC applications.
SR780A V3 (1).pngSR780A V3 (2).pngSR780A V3 (3).pngSR780A V3 (4).pngSR780A V3 (5).png

Form Factor

5U rack

Processors

2x 5th Gen Intel® Xeon® Scalable processors, up to 350W

Memory

Up to 4TB using 32x DDR5 DIMMs with maximum frequency at 5600MHz

GPU

Supports 8x high-performance GPUs:
* 8x NVI DIA HGX™ H200 GPUs with NVLink interconnects at 900 GB/s

I/O Expansion

Up to 10x PCIe Gen5 x16 FHHL adapters:

* 8x in front connected to PCIe switch for GPU connectivity

* 2x in rear connected to CPU for CPU connectivity

Storage

* Up to 12x U.2/U.3 hot-swap NVMe SSDs

* Up to 2x M.2 for boot (RAID via VROC)

Power

Up to 8x hot-swap power supplies, allowing full N+N redundancy

Cooling

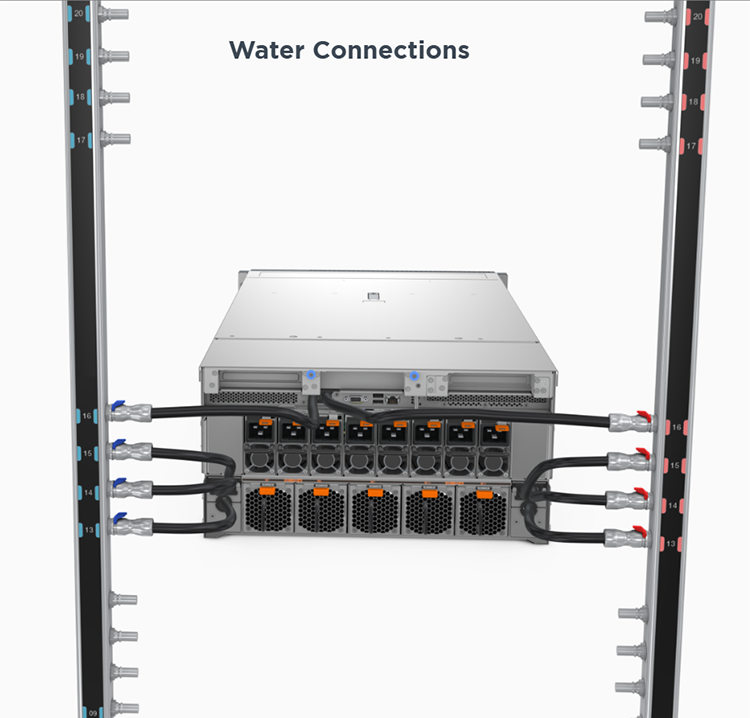

Direct Liquid Cooling for CPU, GPU, and NVLink Switches
Air cooled with N+1 hot-swap fan solution for the rest of the system

Management

XClarity Controller2 (XCC2), which provides advanced service-processor control, monitoring, and alerting functions. The XCC2 consolidates the service processor functionality, super I/O, video controller, and remote presence capabilities into a single chip on the server system board.

OS Support

RHEL, Ubuntu, Alma Linux, Rocky Linux, ESXi
