Form Factor |
1U Rackmount
Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6")
Package: 605 x 197 x 878mm (23.8" x 7.8" x 34.6")
|
Processor |
Dual Socket P4 (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Up to 40C/80T; Up to 60MB Cache per CPU
|
GPU |
Max GPU Count: Up to 2 single-width GPUs
Supported GPU:NVI DIA PCIe: L4, A2
Intel PCIe: Intel Data Center GPU Flex 140
|
System Memory |

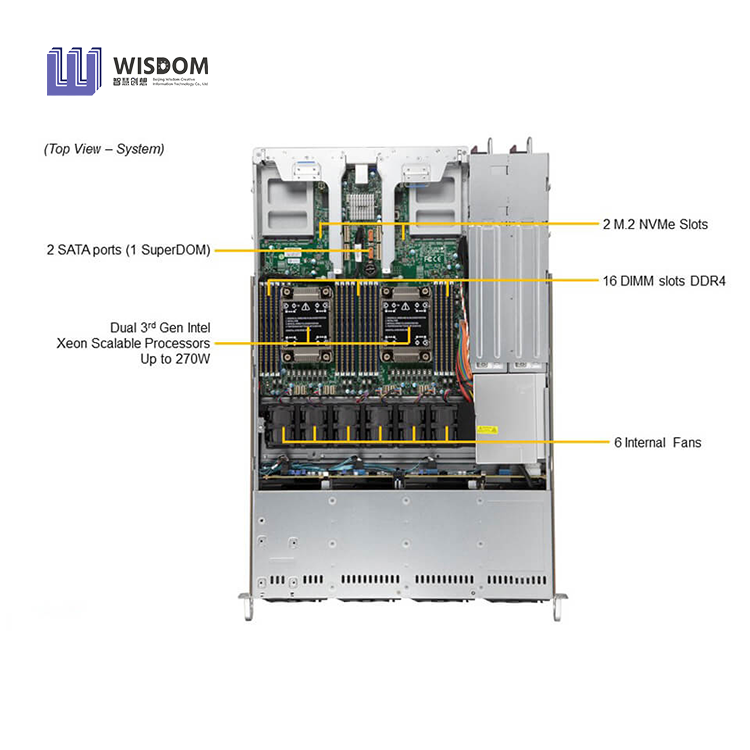

Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series
|
Drive Bays Configuration |

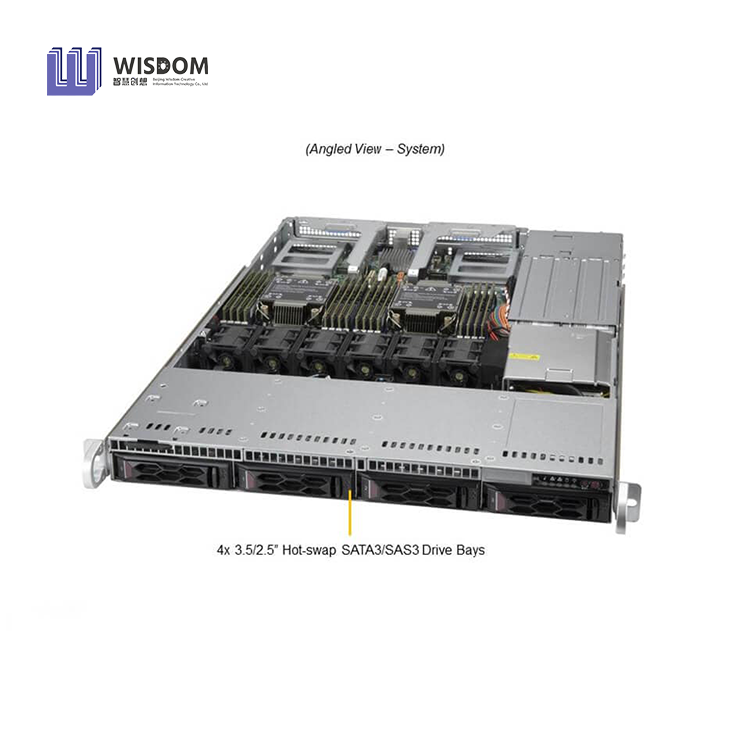

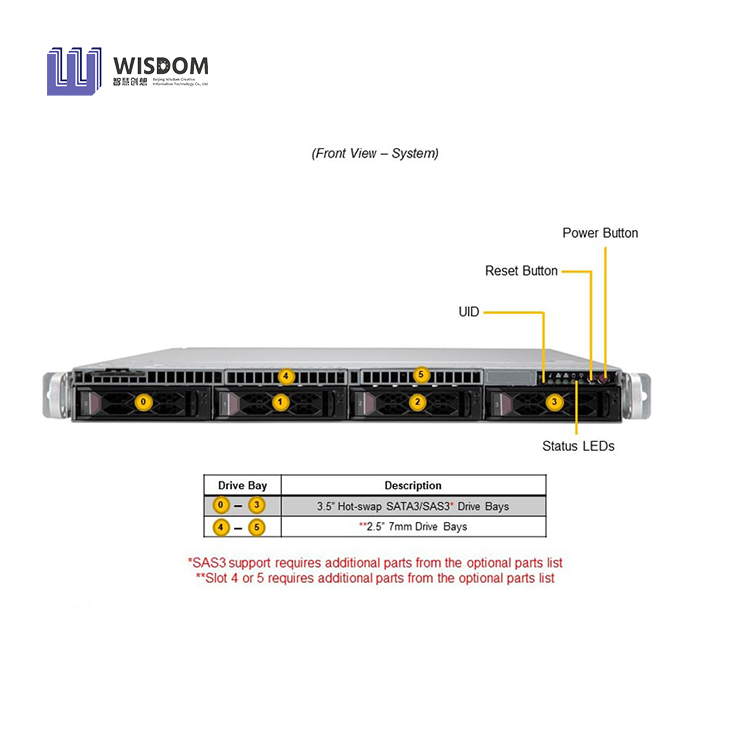

Default: Total 4 bays
4 front hot-swap 3.5" SAS/SATA drive bays
Option A: Total 4 bays
4 front hot-swap 2.5" SAS/SATA drive bays
M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID) Peripheral Bays: 2 2.5" peripheral bays (optional)
|
Expansion Slots |
Default
* 2 PCIe 4.0 x16 FHHL slots
* 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible) |
On-Board Devices |
SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset: Intel® C621A
Network Connectivity: Via AIOM
|

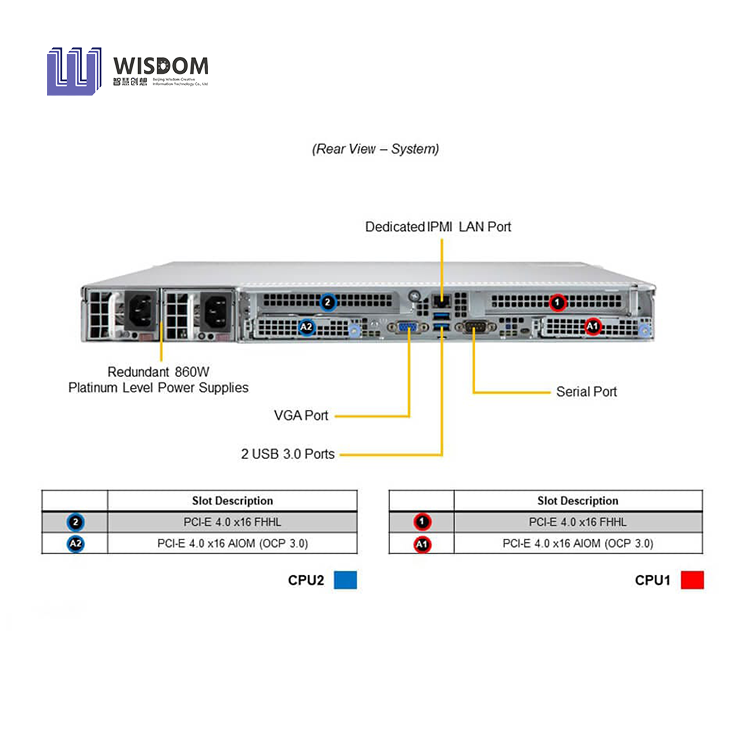

Input / Output |
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 2 USB 3.2 Gen1 Type-A ports(rear)
Video: 1 VGA port
Serial: 1 COM port(Rear)
DOM: 1 SuperDOM (Disk on Module) port
TPM: 1 TPM header
|
System Cooling |
Fans: 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud: 2 Air Shrouds
|
Power Supply |
2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies |
System BIOS |
BIOS Type: AMI 32MB SPI FLASH ROM |
Management |
SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5);
Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
|
PC Health Monitoring |
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment
Thermal Control for fan connectors
CPU:Monitors for CPU Cores, Chipset Voltages, Memory.
8 Phase-switching voltage regulator
|
Dimensions and Weight |
Weight:Gross Weight: 46 lbs (20.9 kg)
Net Weight: 25 lbs (11.3 kg)
Available Color: Black front & sliver bod
|
Operating Environment |
RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
Motherboard |

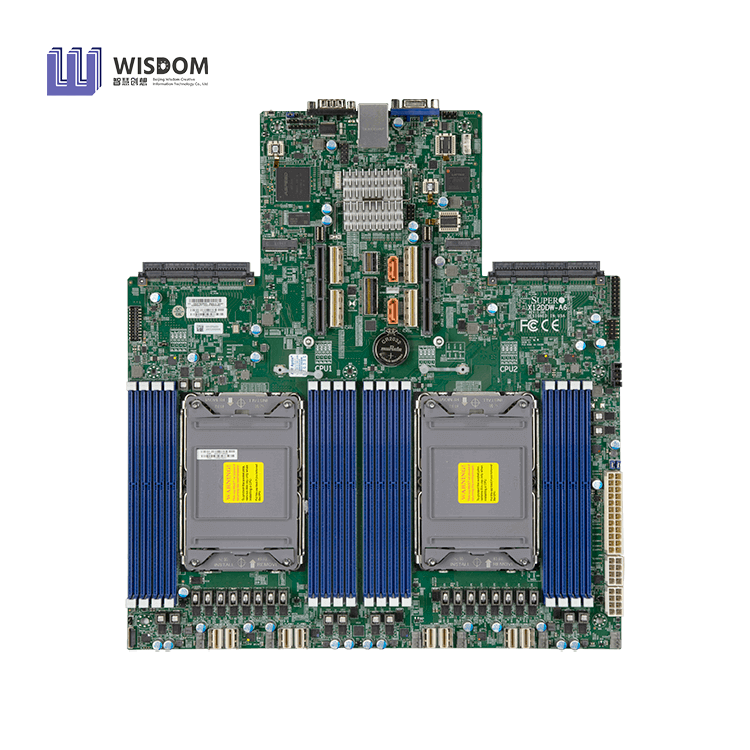

Super X12DDW-A6 |
Chassis |
CSE-LA15TS-R860AWP |
×
