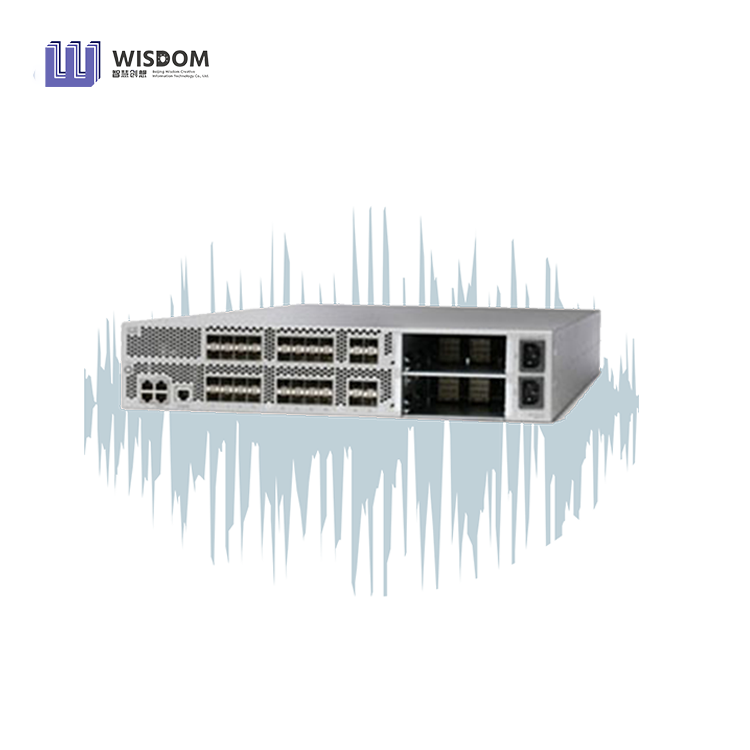

Cisco 6000 Series Switches

Product overview

Cisco 6000 Series Switches are cloud-managed network fabric switches. When paired with a Cisco Nexus® Hyperfabric subscription, they provide a network fabric delivered as a service data center offer that enables customers to easily design, deploy, manage,and scale multiple fabrics globally with a minimum of expertise. It reinvents and simplifies every step of IT operations, ensuring repeatable and predictable outcomes.

Cisco Nexus Hyperfabric is a cloud-managed vertical stack solution consisting of purpose-built hardware, software, a cloud controller, day-2 operations, automation, and Cisco support that eliminates complexity. IT, application and DevOps teams manage the full lifecycle of designing, ordering, deploying, validating, monitoring, and scaling fabrics without requiring deep networking or operational expertise.
  • Description
  • Cisco 6000 Series Switch port configurations.

Product overview

Cisco 6000 Series Switches are cloud-managed network fabric switches. When paired with a Cisco Nexus® Hyperfabric subscription, they provide a network fabric delivered as a service data center offer that enables customers to easily design, deploy, manage,and scale multiple fabrics globally with a minimum of expertise. It reinvents and simplifies every step of IT operations, ensuring repeatable and predictable outcomes.

Cisco Nexus Hyperfabric is a cloud-managed vertical stack solution consisting of purpose-built hardware, software, a cloud controller, day-2 operations, automation, and Cisco support that eliminates complexity. IT, application and DevOps teams manage the full lifecycle of designing, ordering, deploying, validating, monitoring, and scaling fabrics without requiring deep networking or operational expertise.
Cisco_6000_Series (8).png

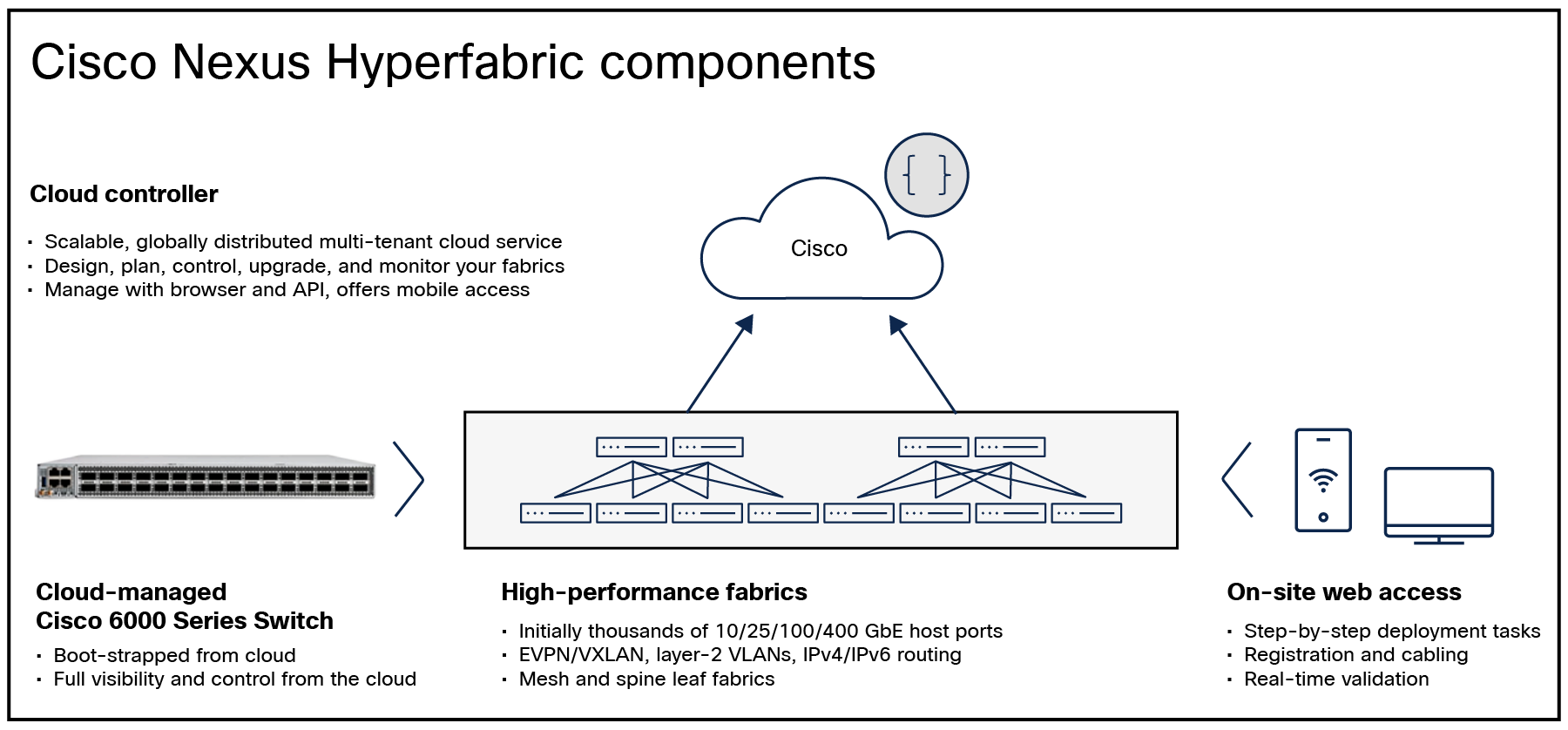

Figure 1.
Cisco Nexus Hyperfabric vertical stack solution

When the Cisco 6000 switches arrive on-site and are deployed, they automatically connect to the cloud, to be claimed and provisioned by the cloud controller with a zero-touch plug-and-play approach. This process takes just minutes and results in a fully operational network fabric. When it comes time to change the capacity or shape of the design, customers can edit the design, approve the changes, and repeat the same process. The product guides all the physical changes needed to migrate the old topology to the new desired state, including cabling adjustments, and it reconfigures itself automatically.

Cisco HF6100 switch models

At the heart of the Hyperfabric 6100 Series are Cisco's Q200 and G200 ASICs, built on 7-nm and 5-nm technology, respectively,which offer exceptional power efficiency and high performance without the need for High-Bandwidth Memory (HBM). These switches deliver bandwidth levels ranging from 12.8 Tbps to 51.2 Tbps, making them suitable for a wide variety of roles, from traditional data center Top-of-Rack (ToR) deployments to high-density IP fabric leaf and spine configurations. The compact form factors, ranging from 1 Rack Unit (1RU) to 2RU, offer flexibility for various network designs catering to different levels of network scaling and traffic demand.

The Cisco Silicon One Q200 ASIC:

● Is built on 7nm fabrication technology, capable of high performance while maintaining a low-power footprint
● Has up to 12.8 (switching ASIC capacity) Tbps switching capacity with 8 Bpps forwarding rate
● Has 80 MB of dedicated low-latency buffer, with up to 8 GB of HBM buffer for deep packet buffers
● Provides up to 60 native nonblocking 10/25/50 Gigabit Ethernet SFP56 ports
● Provides up to 32 native nonblocking 40/100/200/400 Gigabit Ethernet QSFP-DD ports
● Has ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes

The Cisco Silicon One G200 ASIC:
● Is built on 5nm fabrication technology, capable of AI/ML workloads while maintaining an ultra-low-latency footprint
● Has up to 51.2 (switching ASIC capacity) Tbps switching capacity with 20 Bpps forwarding rate
● Provides up to 64 native nonblocking 100/200/400/800 Gigabit Ethernet OSFP ports
● Has ASIC tables for switching scale up to 512K MAC addresses and routing scale up to 2M routes

Platform details

Switch models and configurations
Figures 2 through 6 show the Cisco 6000 Series Switches.
Cisco_6000_Series (1).jpg

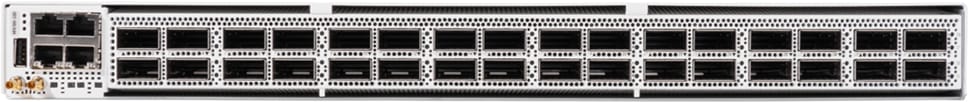

Figure 2.
HF6100-32D: Cisco 6000 Series switch with 32x400Gbps QSFP-DD – front
Cisco_6000_Series (2).jpg

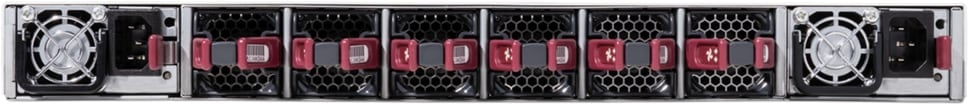

Figure 3.
HF6100-32D: Cisco 6000 Series Switch with 32x400Gbps QSFP-DD – back
Cisco_6000_Series (3).jpg
Figure 4.
HF6100-60L4D: Cisco 6000 Series Switch with 60x 50G SFP56+ 4x400G QSFP-DD – front
Cisco_6000_Series (9).png

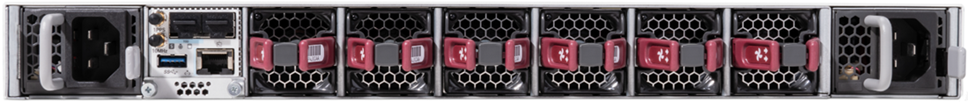

Figure 5.
HF6100-60L4D: Cisco 6000 Series Switch with 60x 50G SFP56+ 4x400G QSFP-DD – back
Cisco_6000_Series (10).png

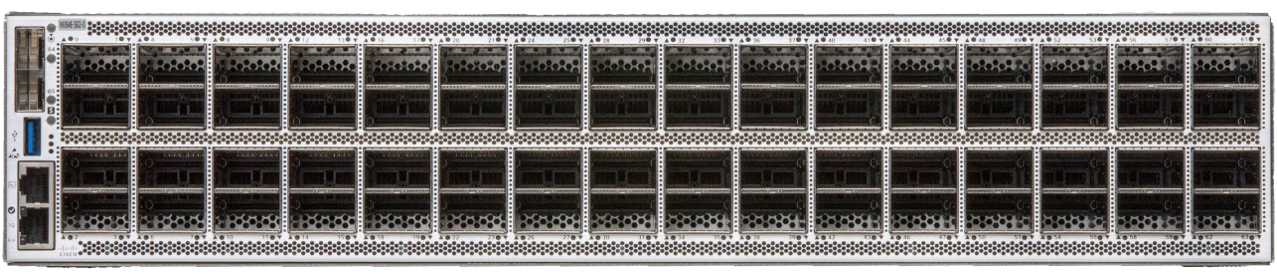

Figure 6.
HF6100-64ED: Cisco 6000 Series Switch with 64x800G OSFP – front
Model
HF6100-60L4D
Description
Cisco 6000 Hyperfabric switch with 60x50G SFP56 4x400G QSFP-DD
1G port density (RJ45) Mgmt Ethernet
1
1G port density (RJ45) RS-232
1
1G/10G/25G/50G port density (SFP56)
601 with 56Gb SerDes
40G/100G/200G/400G port density (QSFP-DD)
4
Breakout support
Yes
Model
HF6100-32D
Description
Cisco 6000 Hyperfabric switch with 32x400Gbps QSFP-DD
1G port density (RJ45) Mgmt Ethernet
1
1G port density (RJ45) RS-232
1
1G/10G/25G/50G port density (SFP56)
-
40G/100G/200G/400G port density (QSFP-DD)
32 with 56Gb SerDes
Breakout support
Yes
Model
HF6100-64ED
Description
Cisco 6000 Hyperfabric switch with 64x800Gbps OSFP
1G port density (RJ45) Mgmt Ethernet
1
1G port density (RJ45) RS-232
1
10G/25G port density (QSFP28) for PIE
1 (for Punt Injection Ethernet “PIE” only)
100G/200G/400G/800G port density (OSFP)
64 with 112 Gb SerDes
Breakout support
Yes

Platform support

The following table contains a list of Cisco 6000 Series Switches and their supported Cisco Nexus Hyperfabric subscription tiers.
Table 3. Cisco Nexus Hyperfabric switch platform support
Product family
Platforms supported
Subscription feature support
Cisco 6000
HF6100-60L4D
HF6100-32D
HF6100-64ED
Cisco Nexus Hyperfabric Essentials subscription
Cisco Nexus Hyperfabric AI Premier subscription

Specifications of the Cisco 6000 Series Switches

HF6100-60L4D HF6100-32D HF6100-64ED
Mount type
1U rack mount
2U rack mount
CPU
Intel Broadwell 2.3-GHz x86 CPU with 8 cores
Intel Broadwell 2.4 GHz x64 CPU with 4 cores
Intel Broadwell 2.0 GHz x64 CPU with 8 cores
Ram
32 GB of DD4 memory
16GB of DDR4 memory
64GB of DDR4 memory
Weight
28.10 lbs (12.75kg), including power supplies and fans
31 lbs (14.09 kg), including power supplies and fans
45.5 lbs (20.6 kg), including power supplies and fans
Dimensions
H = 1.73 in. (4.39 cm)
W = 17.5 in. (44.45 cm)
D = 21.8 in. (55.37 cm), including fan/ tray handles
H = 1.73 in. (4.40 cm)
W = 17.3 in. (43.9 cm)
D = 23.6 in. (59.9 cm), including fan/tray handles
H = 3.43 in. (8.76 cm)
W = 17.3 in. (44.0 cm)
D = 24.7 in. (62.7 cm), including fan/tray handles
Typical system power
525W at 12.8 Tbps (does not include pluggable power load)
288W at 12.8 Tbps (does not include pluggable power load)
995W at 51.2 Tbps (does not include pluggable power load)
Power supply slots
2 (1+1 redundancy)
Fan slots
6 (5+1 redundant cooling)
4 (3+1 redundant cooling)
AC power supply
1500W AC port intake

1400W AC port intake
1400W AC port exhaust
2000W AC port intake
2000W AC port exhaust

3000W HV-AC port intake
DC power supply
1500W DC port intake
2000W DC port intake
2000W DC port exhaust
3000W HV-DC port intake
Operating temperature
23 to 133°F (-5 to 45°C) at sea level
32 to 104°F (0 to 40°C) at sea level
Non-operating temperature
-40 to 158°F (-40 to 70°C)
Humidity
5% to 95%
Altitude
0 to 9842 ft (0 to 3000 m)
MTBF
