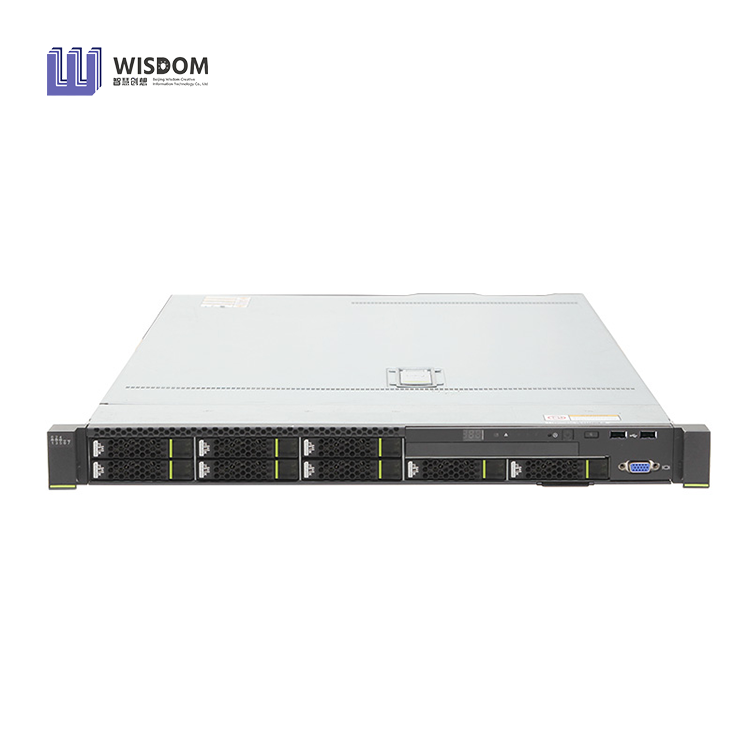

Huaweis FusionServer RH1288 V3 1U Rack Server

Huaweis FusionServer RH1288 V3 is a standard 1U, 2-socket rack server. It supports Intel® Xeon® E5-2600 v3 and v4 series processors with up to 20 cores per processor, unlocking superior performance for enterprises’ computing-intensive applications. Designed for cloud computing applications, enterprise applications requiring computing and storage resources, RH1288 V3 strikes an optimal balance between performance and density by supporting up to 1 TB memory and 16 TB local storage. This RH1288 V3 Rack Server offers 3 configurations, including 8-disk configuration 1, 8-disk configuration 2 and 4-disk configuration.

Description
Product Parameters

huaweis fusionserver rh1288 v3 1u rack server-2

+86-18600585382

[email protected]

Description

RH1288 V3 (4).png RH1288 V3 (5).png RH1288 V3 (6).png

RH1288 V3 (3).png

Product Parameters

Processors	Intel® Xeon® E5-2600 v3/v4 series processors
Memory	16 DDR4 RDIMMs/LRDIMMs
Internal Storage	Hard disk configurations: · 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model) · 4 x 3.5-inch SAS/SATA HDDs Built-in flash memory: · 2 mini-SSD cards (SATADOMs) · 2 SD cards
RAID	· RAID 0, 1, 10, 5, 50, 6, or 60 · Configured with a supercapacitor for power-off protection for the cache (optional) · RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports	2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports
PCIe expansion	Up to 3 PCIe slots
Fan Modules	5 hot-swappable fan modules in N+1 redundancy mode
Power Supply Units	2 hot-swappable PSUs in 1+1 redundancy mode
Management	· Uses Huawei Hi1710 management chip and independent ports · Supports standard management interfaces, such as SNMP and IPMI;provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring · Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating temperature	5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant
Dimensions (W x D x H)	RH1288 V3 with 3.5-inch hard disks: 436 mm x 748 mm x 43 mm RH1288 V3 with 2.5-inch hard disks: 436 mm x 708 mm x 43 mm
