Highest density per core ideal for:
• Virtualization with lower licensing cost
• Data Analytics
Highest density per core ideal for:
• Virtualization with lower licensing cost
• Data Analytics
|
Processor |
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor |
|
Memory |
• 24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 5200 MT/s • Supports registered ECC DDR5 DIMMs only |
|
Storage controllers |
• Internal Controllers (RAID): PERC H365i, H965i, H975i* • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) •External HBAs (non-RAID): HBA465e* |
|

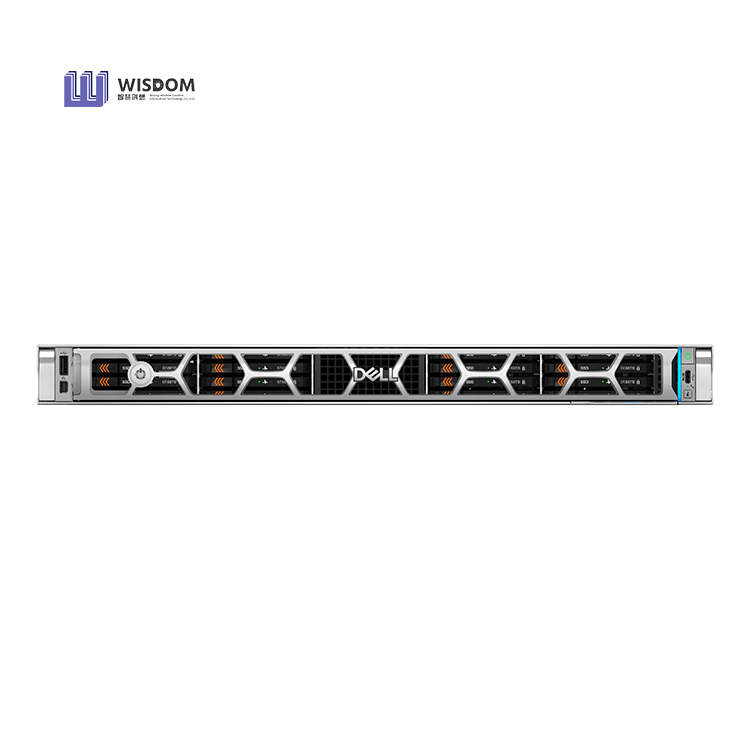

Drive bays |
Front bays: • 4 x 3.5-inch SAS/SATA* • 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA* • 10 x 2.5-inch with 4 xUniversal* • 16 x EDSFF E3.S Gen5 NVMe drives • 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S* |
|
Power Supplies |
• Platinum 800W, 1100W • Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC**, 1800W** • Telco: 1400W -48VDC* |
|
Cooling Options |
Air cooling, Direct Liquid Cooling (DLC) |
|
Fans |
• Up to four sets (dual fan module) hot plug fans |
|
Dimensions |
• Height – 42.8 mm (1.68 inches) • Width – 482.0 mm (18.97 inches) • Depth – 816.921 mm (32.16 inches) with bezel – 815.141 mm(32.09 inches) without bezel |
|
Form Factor |
1U rack server |
|
Embedded Management |
• iDRAC10 • iDRAC Direct • iDRAC RESTful API with Redfish • Racadm CLI |
|
Bezel |
Optional metal bezel |
|
OpenManage Console |
• OpenManage Enterprise (OME) • OME Update Manager • OME APEX AIOps Observability • OME Integration for VMware vCenter (with VMware Aria Operations) • OME Integration for Microsoft System Center • OpenManage Integration for Windows Admin Center |
|
GPU Options |
Up to 3 x 75W SW |
|

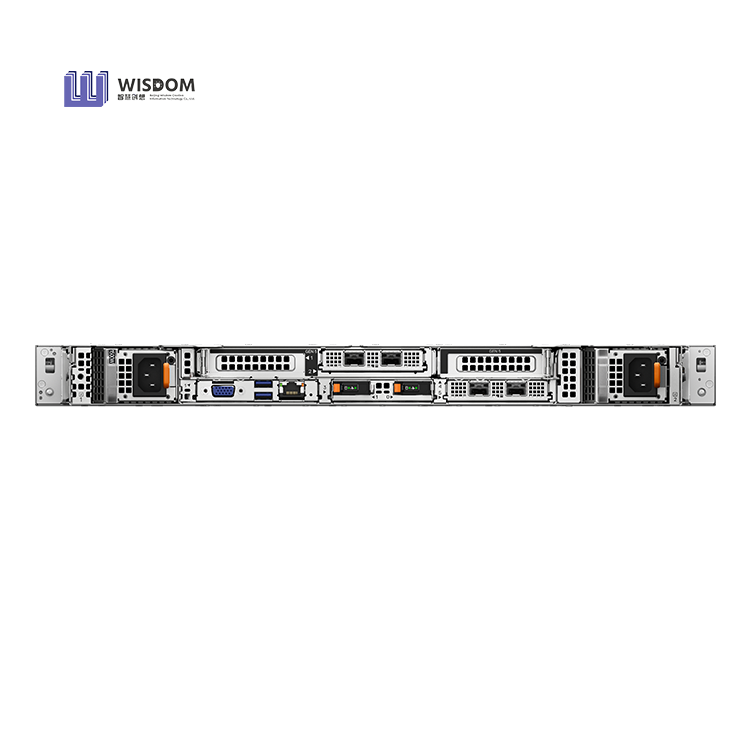

Ports |
Front Ports • 1 x USB 2.0 Type-A (optional LCP KVM) • 1 x USB 2.0 Type-C (HOST/BMC Direct) • 1 x MiniDisplay port (optional LCP KVM) Rear Ports • Two USB 3.1 Type-A • 1 x VGA • 1 Gb dedicated BMC Ethernet port Internal Port • 1 x USB 3.1 Type-A |
|
PCIe |
Up to three PCIe slots (x16 connector) • Slot 1 1 x16 Gen5 Full Height or Low Profile • Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0 • Slot 4: 1 x16 Gen5 Full Height or Low profile |
Adaptable and efficient mainstream servers
Enhance data centre efficiency for sustainability by air-cooling most configurations, minimising carbon footprint, and consolidating infrastructure to improve TCO.
Exceptional performance and efficiency
Ideal for businesses looking for versatility to adapt to their evolving needs.
* Powered by one AMD EPYC™ 5th generation processor
* Up to 24x DDR5 RDIMMs (up to 3TB max)
Systems management and security solutions
OpenManage systems management
Tame the complexity of your IT environment with Dells
Technologies’ OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, signed firmware and verification, secured component drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
