HP Z6 G5 AI Workstation

Accelerate AI and graphics-heavy projects on the Z6 AI workstation—from data visualization and machine learning to real-time ray tracing and advanced VFX—with powerful single socket technology, up to 3 high-end GPUs, and plenty of room to expand.

Description
Product Display

+86-18600585382

[email protected]

Description

Available Operating Systems	Windows 11 Pro for Workstations Ubuntu 22.04 LTS Linux® Ready Red Hat® Enterprise Linux®
Processor family	Intel® Xeon® processor
Available Processors	Intel® Xeon® W9-3475X (2.2 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 82.5 MB L3 cache, 36 cores, 72threads) Intel® Xeon® W7-3465X (2.5 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 75 MB L3 cache, 28cores, 56 threads) Intel® Xeon® W7-3455 (2.5 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 67.5 MB L3cache, 24 cores, 48 threads) Intel® Xeon® W7-3445 (2.6 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 52.5MB L3 cache, 20 cores, 40 threads) Intel® Xeon® W5-3435X (3.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads) Intel® Xeon® W5-3433 (2.0 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads) Intel® Xeon® W5-3425 (3.2 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 12 cores, 24 threads) Intel® Xeon® W5-3423 (2.1 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 12 cores, 24 threads) Intel® Xeon® W7-3545 (2.7 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 67.5 MB L3 cache, 24 cores, 48 threads) Intel® Xeon® W5-3535X (2.9 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 52.5 MB L3 cache, 20 cores, 40 threads) Intel® Xeon® W5-3525 (3.2 GHz base frequency, up to 4.8 GHz with Intel® Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads)
Chipset	Intel® W790
Form factor	Tower
Maximum memory	1 TB DDR5-4800 ECC SDRAM Transfer rates up to 4800 MT/s.
Internal storage	1 TB up to 12 TB 7200 rpm SATA Enterprise HDD 512 GB up to 2 TB HP Z Turbo Drive NVMe™ M.2 SSD 512 GB up to 4 TB HP Z Turbo Drive PCIe® SSD M.2 512 GB up to 4 TB HP Z Turbo Drive PCIe® SED Opal 2 M.2 SSD 512 GB up to 4 TB HP Z Turbo Drive Dual Pro PCIe® SSD 512 GB up to 4 TB HP Z Turbo Drive Quad Pro PCIe® SSD
Optical drive	HP Slim DVD-ROM; HP Slim Blu-ray Writer; HP Slim DVD-Writer
Available Graphics	Ultra High-End: NVI DIA RTX™ A6000 (48 GB GDDR6 dedicated) NVI DIA RTX™ A5000 (24 GB GDDR6 dedicated) AMD Radeon™ Pro W6800 (32 GB GDDR6 dedicated) NVI DIA RTX™ 6000 Ada Generation (48 GB GDDR6 dedicated) AMD Radeon™ Pro W7900 (48 GB GDDR6 dedicated) NVI DIA RTX™5000 Ada Generation (32 GB GDDR6 dedicated) NVI DIA® A800 (40 GB GDDR6 dedicated) High-End: NVI DIA RTX™ A4500 (20 GB GDDR6 dedicated) NVI DIA RTX™ A4000 (16 GB GDDR6 dedicated) NVI DIA® A4000E (16 GB GDDR6 dedicated) NVI DIA RTX™ A2000 (12 GB GDDR6 dedicated) AMD Radeon™ RX 6700 XT (12 GB GDDR6 dedicated) NVI DIA RTX™ 4000 Ada Generation (20 GB GDDR6 dedicated) NVI DIA RTX™ 2000 Ada Generation (16 GB GDDR6 dedicated) AMD Radeon™ Pro W7500 (8 GB GDDR6 dedicated) AMD Radeon™ Pro W7600 (8 GB GDDR6 dedicated) NVI DIA RTX™ 4500 Ada Generation (24 GB GDDR6 dedicated) Mid-Range: NVI DIA® T1000 (8 GB GDDR6 dedicated) AMD Radeon™ Pro W6600 (8GB GDDR6 dedicated) Entry: NVI DIA® T1000 (4 GB GDDR6 dedicated) NVI DIA® T400 (4 GB GDDR6 dedicated) AMD Radeon™ RX 6400 (4 GB GDDR6 dedicated) Intel® Arc™ Pro A40 (6 GB GDDR6 dedicated)
Audio	Realtek ALC3205-CG

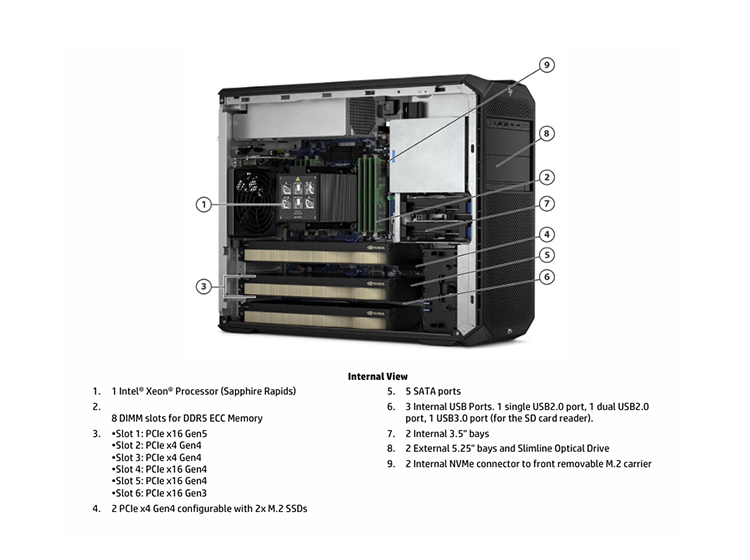

Expansion slots	2 PCIe 4 x4; 2 PCIe 4 x16; 1 PCIe 3 x16; 1 PCIe 5 x16 (Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8 are internal access only for M.2.)

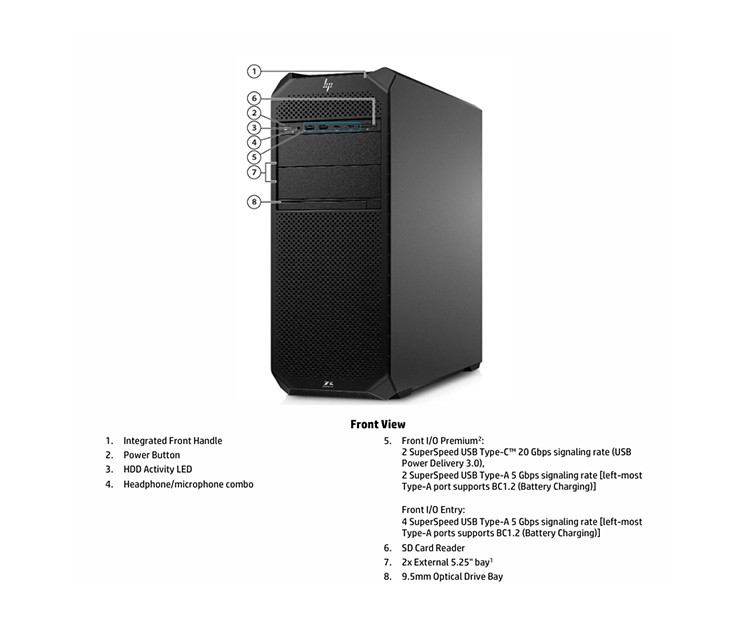

Ports and connectors	Front: 4 USB Type-A 5Gbps signaling rate; 1 headphone/microphone combo ; Optional Ports: Flex IO port – choose one of the following options: 2 SuperSpeed USB Type-A 5Gbps signaling rate, 1 SuperSpeed USB Type-C® 10Gbps signaling rate, 1 serial; 2 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); Front Premium Version: 2 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery), 2 SuperSpeed USB Type-A 5Gbps signaling rate, 1 headphone/microphone combo
Drive Bays	External: Four NVMe™ M.2 SSD; Two 3.5" HDD; Two 9.5 mm ODD; Internal: Four PCIe® M.2 SSD; Four 3.5" HDD
Software	HP PC Hardware Diagnostics UEFI HP Performance Advisor HP Support Assistant Software HP PC Hardware Diagnostics Windows HP Image Assistant HP Manageability Integration Kit HP Anyware HP Services Scan HP Data Science Stack Manager
Security management	Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives

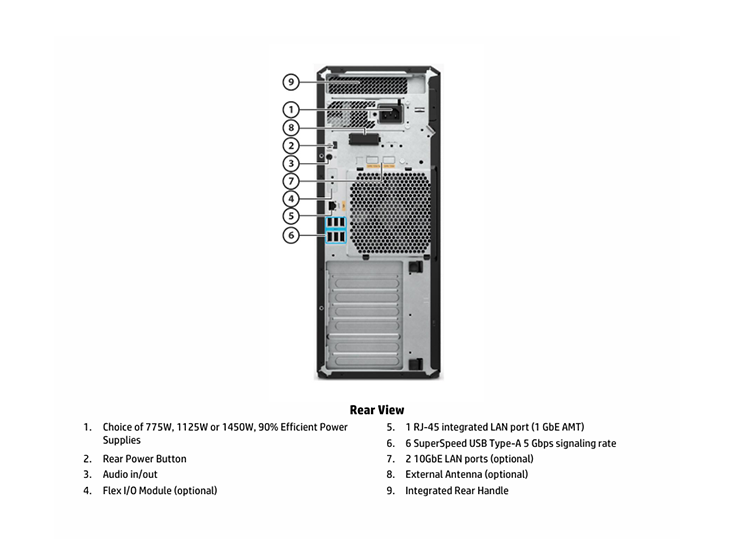

Power	1125 W internal power supply, up to 90% efficiency, active PFC; 1450 W internal power supply, up to 90% efficiency, active PFC; 775 W internal power supply, up to 90% efficiency, active PFC
Dimensions	6.65 x 18.30 x 17.50 in; 16.89 x 46.48 x 44.45 cm; 12.32 x 24.02 x 23.35 in; 31.3 x 61.0 x 59.3 cm (Package)
Weight	Starting at 28.2 lb; Starting at 12.8 kg; Starting at 38.03 lb; Starting at 17.25 kg (Package) ; (Exact weights depend upon configuration (System weight only))

Features:

Unleash extreme graphics performance

Accelerate AI and graphics-heavy projects on the Z6 AI workstation—from data visualization and machine learning to real-time ray tracing and advanced VFX—with powerful single socket technology, up to 3 high-end GPUs, and plenty of room to expand. Accelerate AI and graphics-heavy projects—from data visualization and machine learning to real-time ray tracing and advanced visual effects.With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.

Remarkable performance. Extraordinary expandability.

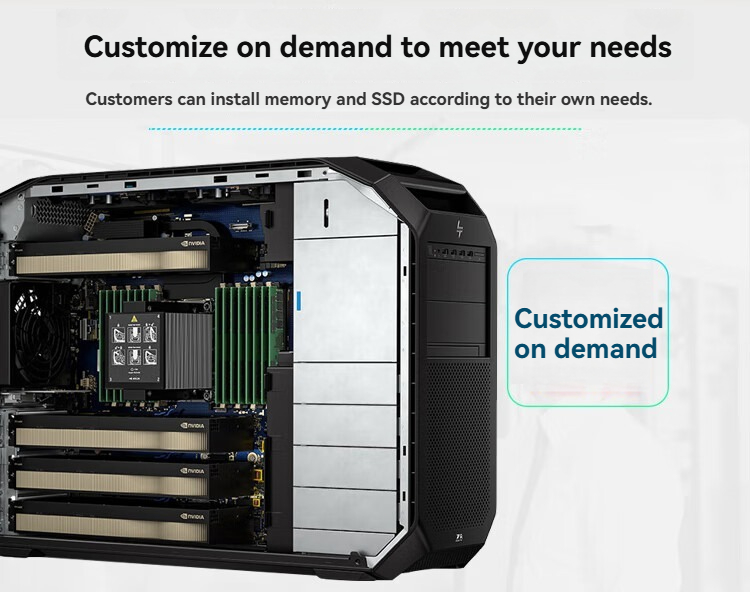

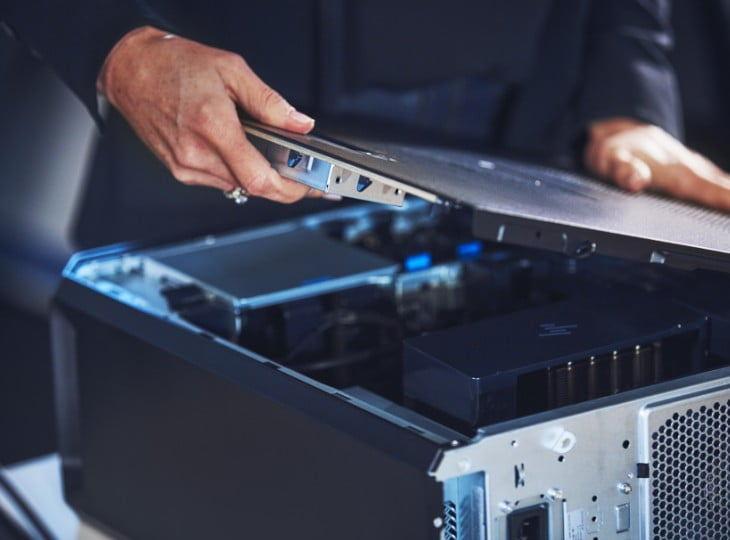

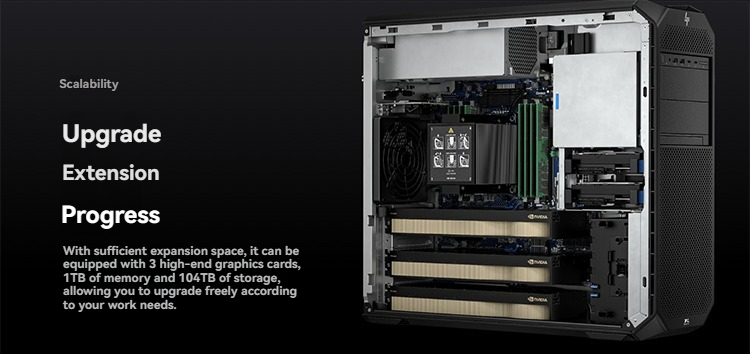

Tackle graphics-intensive workflows with up to 3 high-end GPUs , an Intel® Xeon® W CPU with up to 36 cores , and 1 TB DDR5 RAM3.Easily expand as work evolves with with tool-less access, 6 PCIe slots, 4 front accessible NVMe bays

Engineered to stay cool and quiet.

Push your desktop workstation without disruptive noise. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors. Precisely placed vents and ducts streamline airflow and heat removal.

Ignite AI innovation

Accelerate AI development and inferencing with the Z6 AI workstation, with up to 3 NVIDIA RTX™ 6000 Ada Generation GPUs delivering up to 4,371 AI TOPS for advanced AI. Process proprietary data securely on a local workstation to gain insights faster.

Designed with the planet in mind

At HP, we care about the impact our products have on our people, communities, and planet. That’s why the Z6 contains 40% recycled plastics, 10% recycled metal, 100% sustainably sourced outer box packaging, and is EPEAT® Gold Climate+ registered
