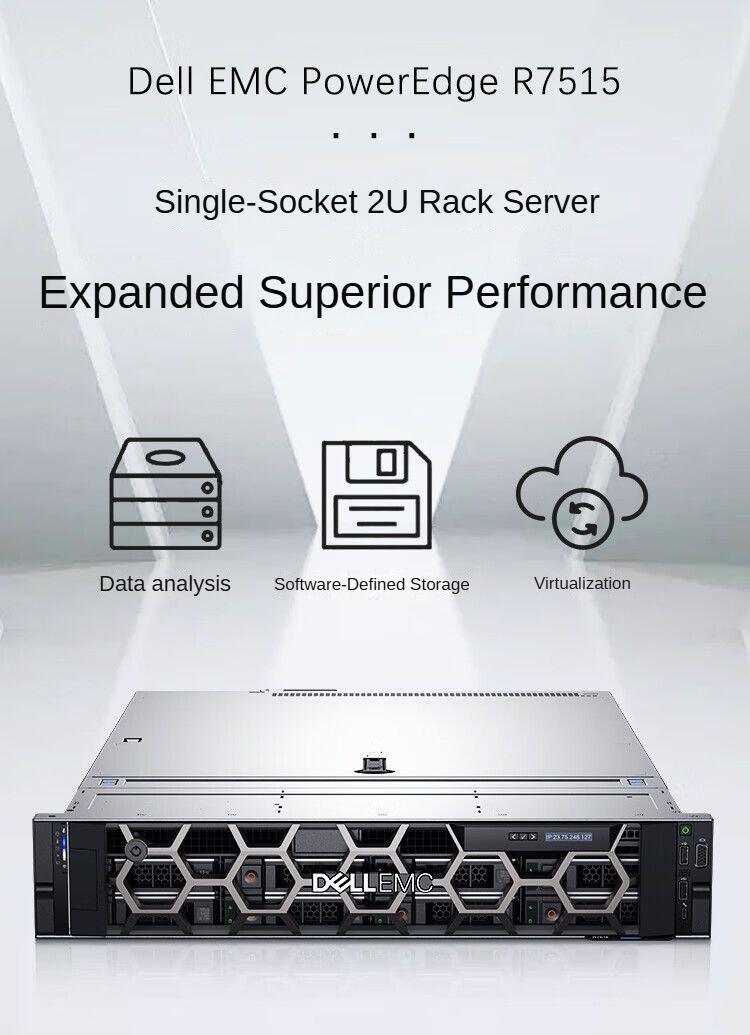

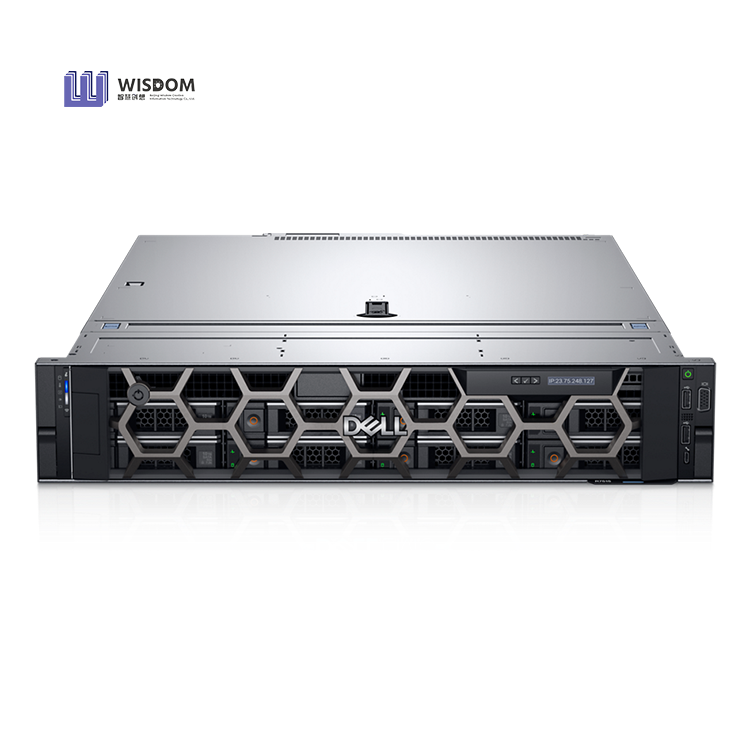

The Dell EMC PowerEdge R7515 rack server is a highly scalable single-socket 2U rack server that delivers outstanding performance and TCO.
The Dell EMC PowerEdge R7515 rack server is a highly scalable single-socket 2U rack server that delivers outstanding performance and TCO.
• Deliver breakthrough performance, innovation and density for traditional and emerging workloads
• Increase efficiency and accelerate operations with an automated infrastructure
• Fortify your data center with integrated security
|
Processor |

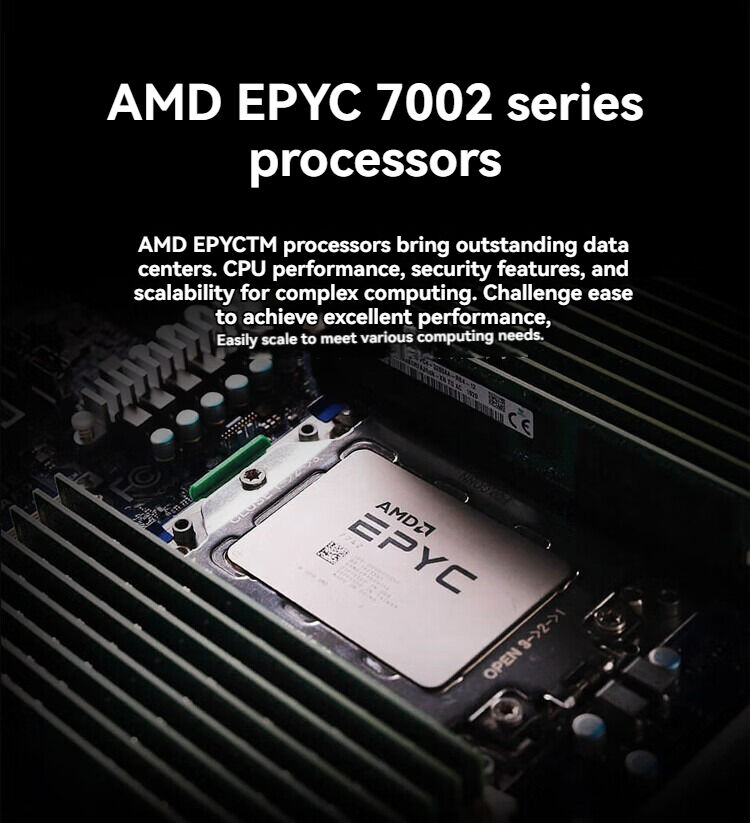

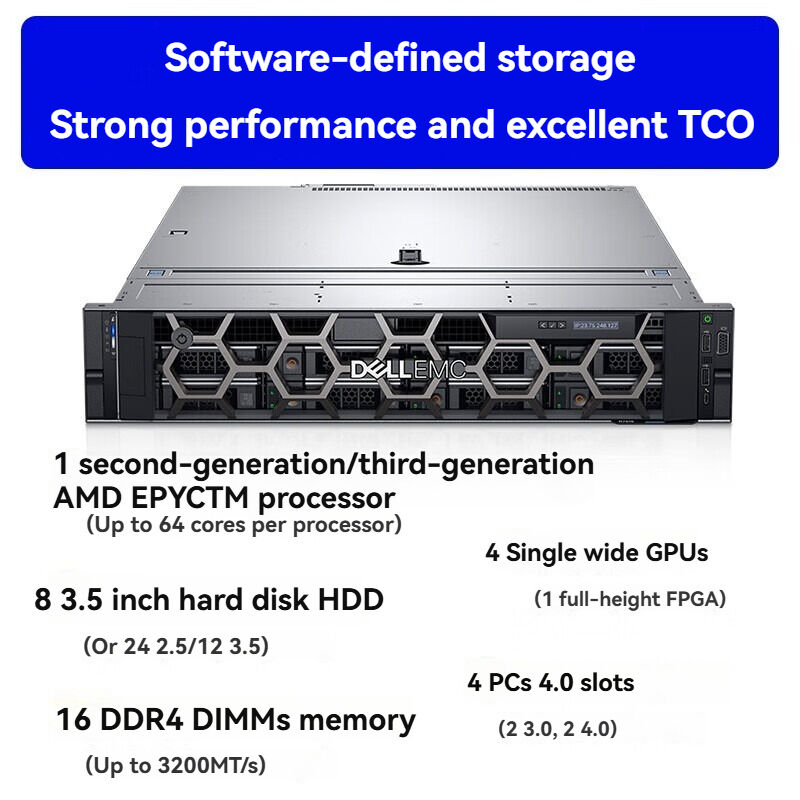

One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores |
|
Memory |
DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S |
|
Controllers |
HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA Chipset SATA/SW RAID(S150): Yes |
|
Drive Bays |

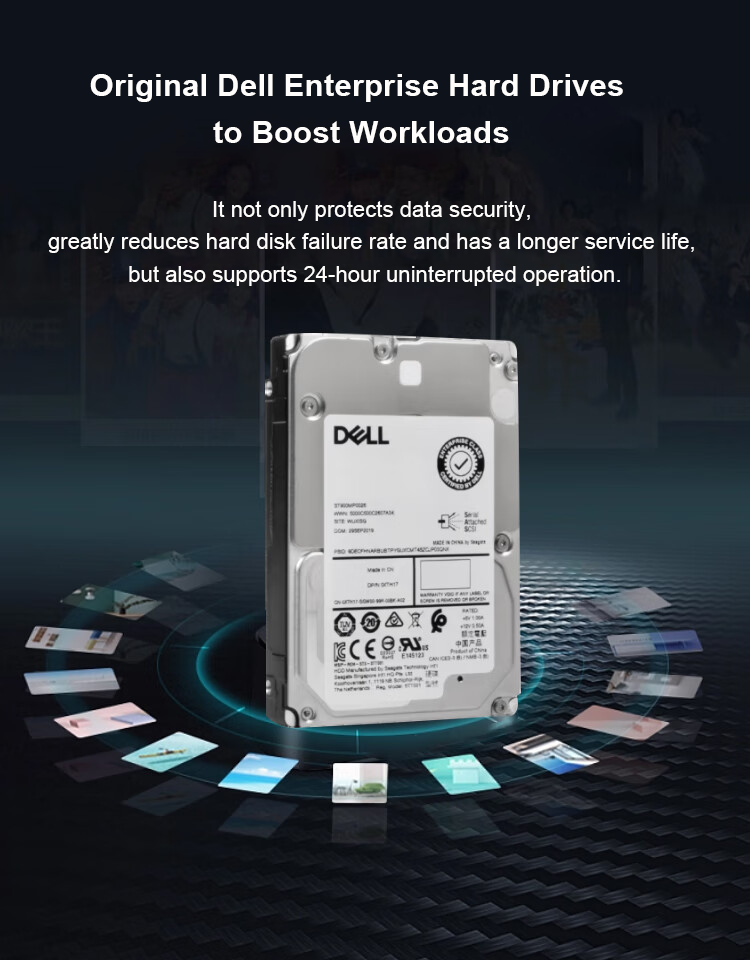

Front Bays Up to 8 x3.5” Hot Plug SATA/SAS HDDs Up to 12x 3.5” hot-plug SAS/SATA HDDs Up to 24x 2.5” Hot Plug SATA/SAS/NVMe
Rear Bays Up to 2x 3.5” hot-plug SAS/SATA HDDs Internal: 2 x M.2 (BOSS) |
|
Power Supplies |
750W Titanium 750W Platinum 1100W Platinum 1600W Platinum |
|
Fans |
Stanadard/High Peformance Fan N+1 Fan redunadancy |
|
Fans |
• Standard (STD) fans • Up to 6 sets hot plug fans |
|
Dimensions |

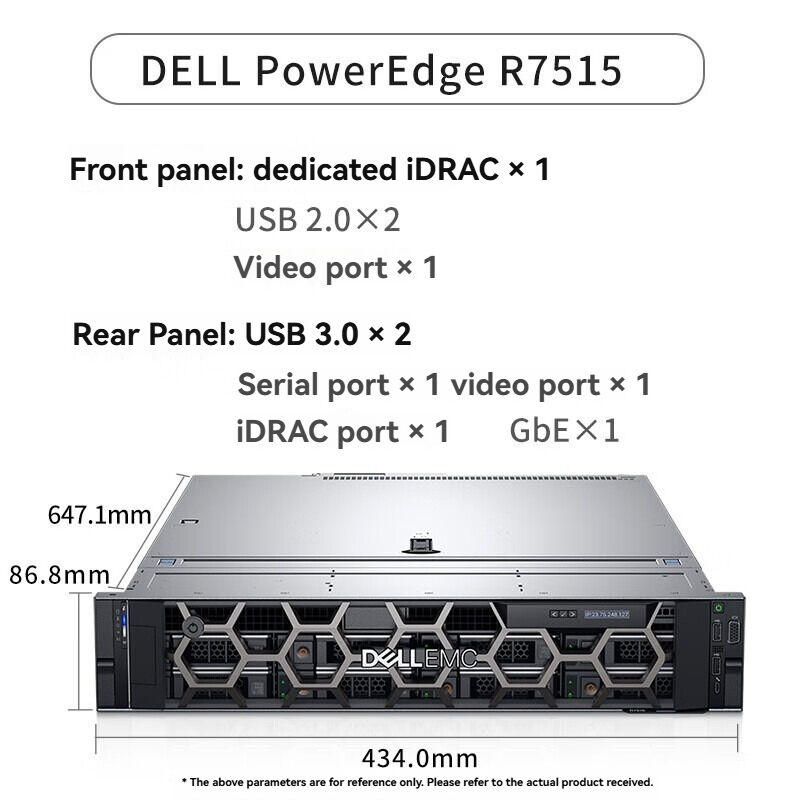

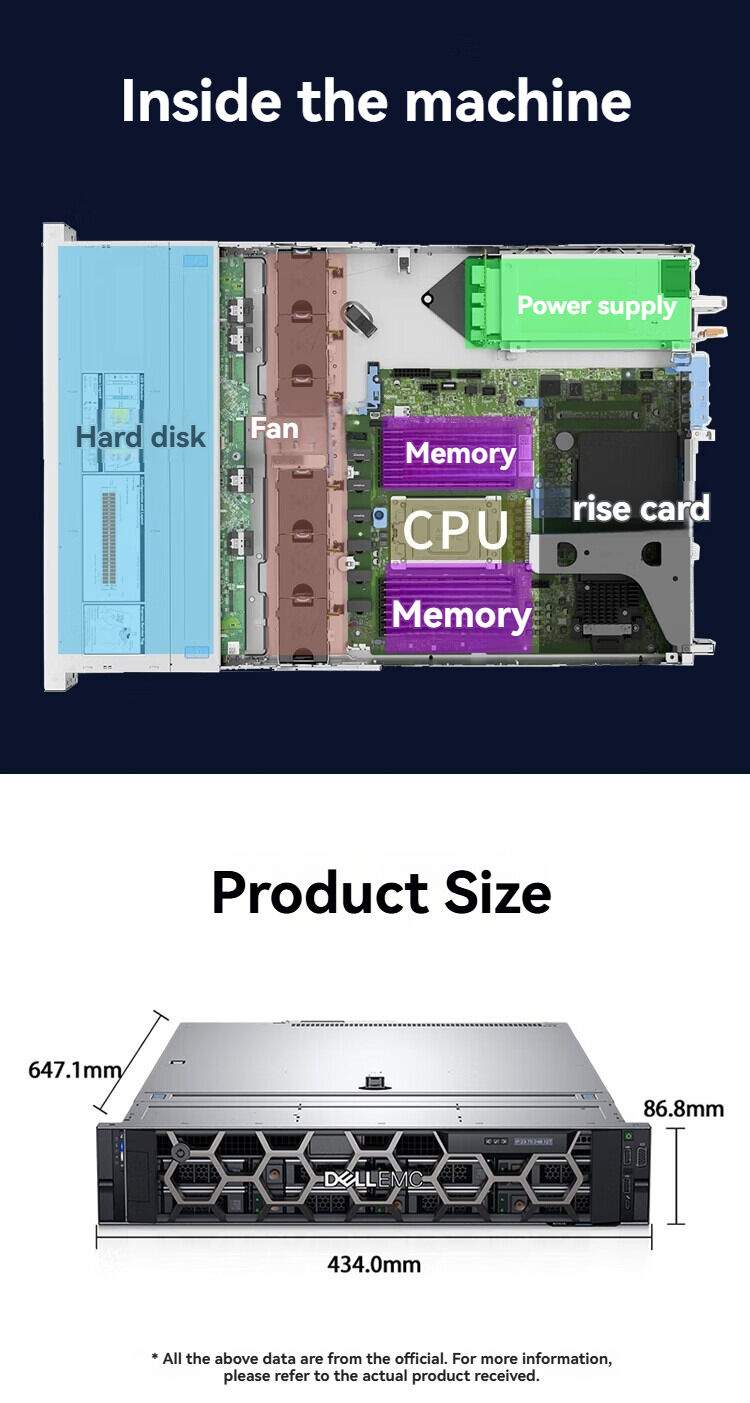

Height: 86.8mm (3.42”) Width: 434.0mm (17.09”) Depth: 647.1mm (25.48”) Weight: 27.3 kg (60.19 lb) |
|
Rack Units |
2U rack server |
|
Embedded mgmt |
iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
|
Bezel |
Optional LCD bezel or security bezel |
|
OpenManage™ SW |
Consoles OpenManage Enterprise OpenManage Enterprise Power Manager Mobility OpenManage Mobile Tools Dell EMC RACADM CLI Dell EMCRepository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs iDRAC Service Module IPMI Tool OpenManage Server Administrator OpenManage Storage Services |
|
Integrations & Connections |
OpenManage Integrations BMC Truesight Microsoft® System Center Redhat® Andible® Modules VMware® vCenter™ OpenManage Connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® XI |
|
Security |
Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional |
|
Networking Options (NDC) |
2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP28 |
|
GPU Options: |
Up to 4 Single-Wide GPU(T4); Up to 1 Full-Height FPGA |
|
Ports |

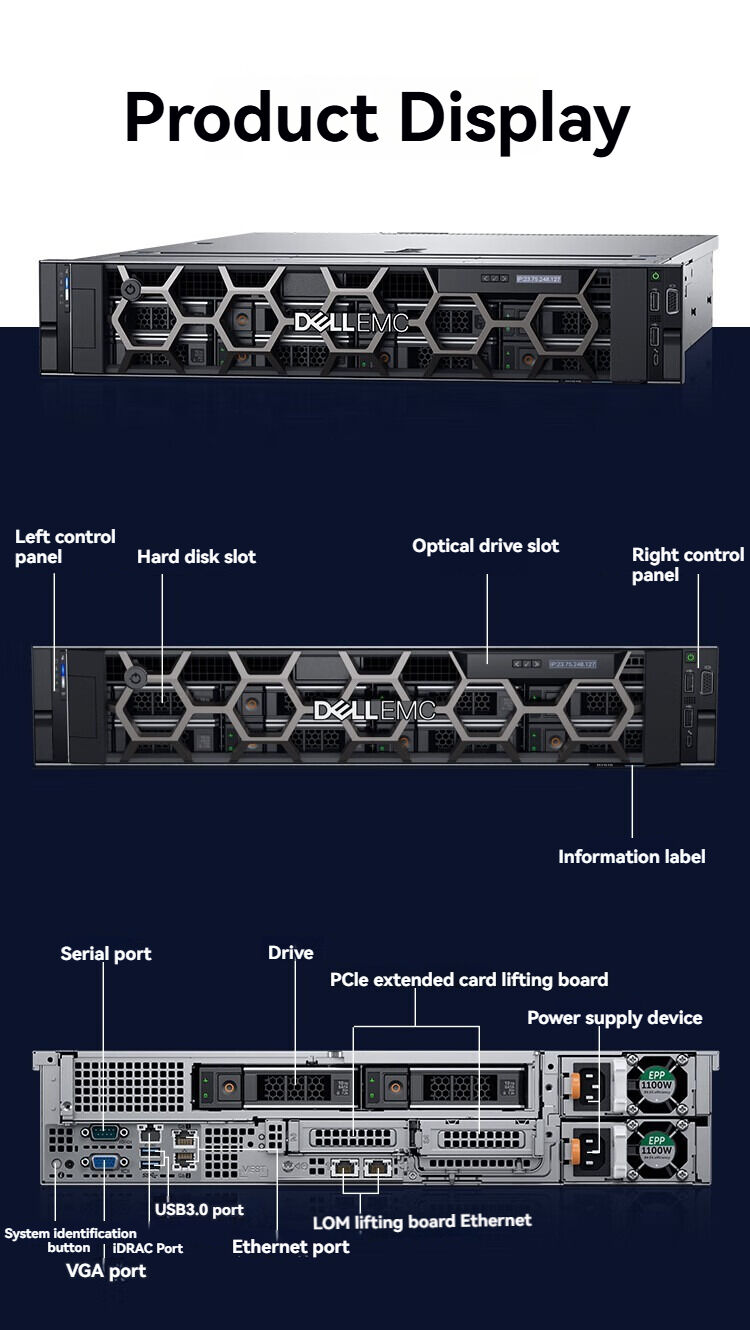

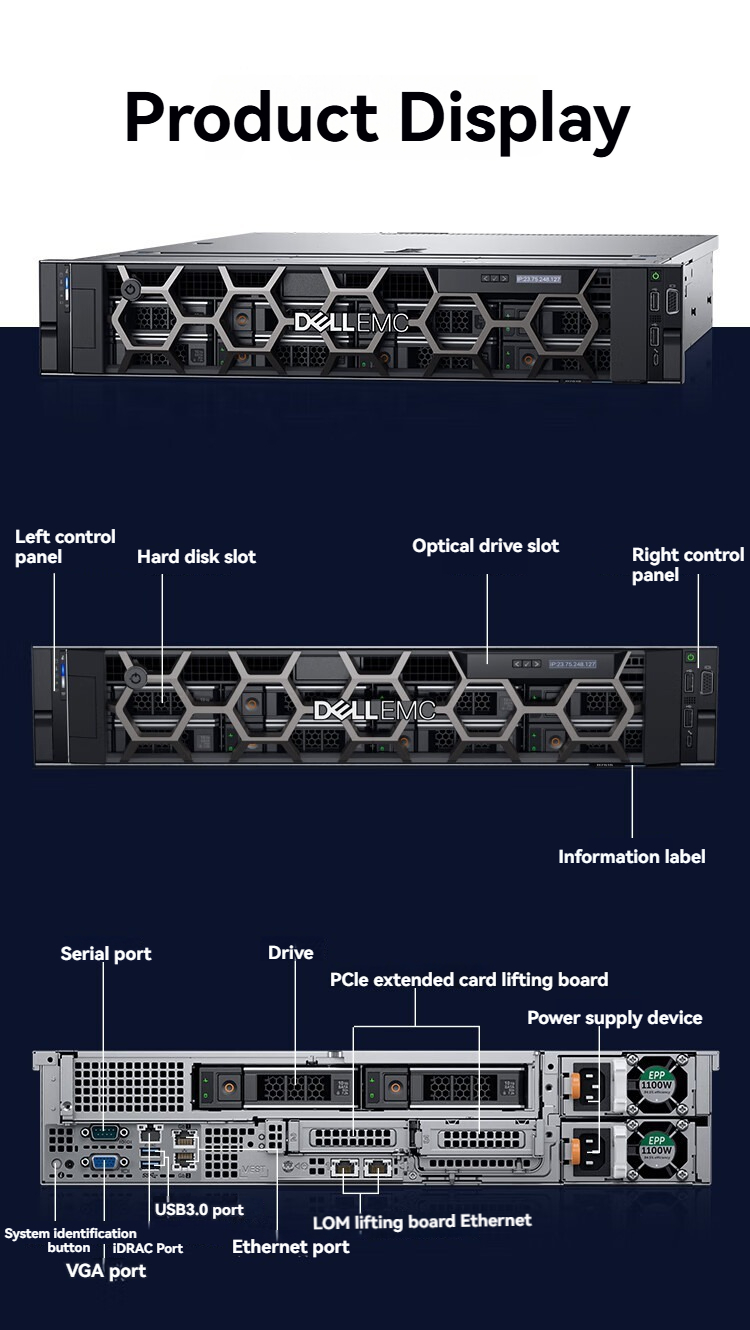

Front Ports 1 x Dedicated iDRAC direct micro-USB 2 x USB 2.0 1 x Video Rear Ports: 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video |
|
PCIe |
Up to 4: 2 x Gen3 slots 2 x16 2 x Gen4 slots 2 x16
|
|
Operating Systems & Hypervisors |
Canonical® Ubuntu® Server LTS Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
