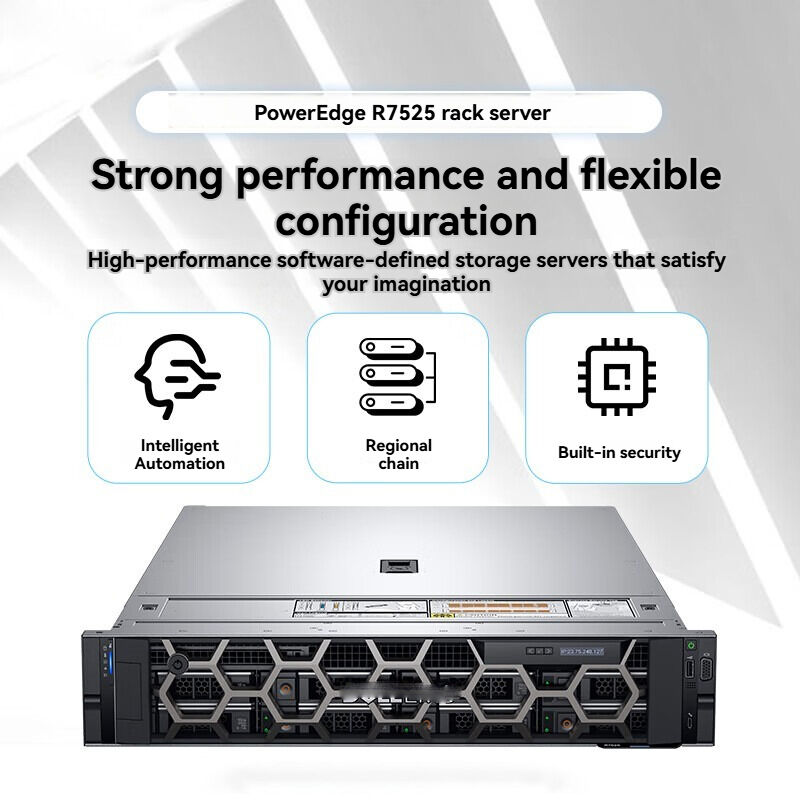

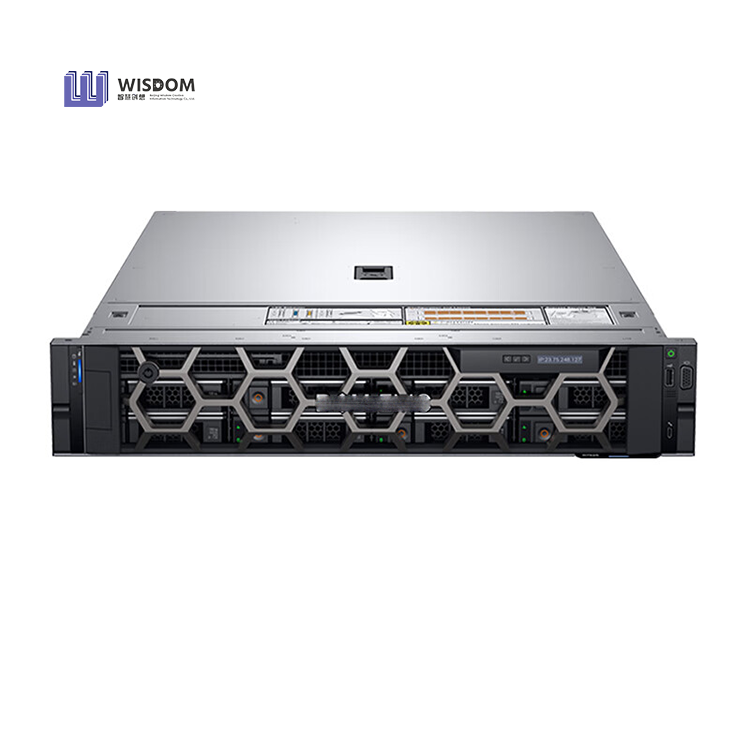

PowerEdge R7525 The new Dell EMC PowerEdge R7525 Rack Server is a highly adaptable rack server that delivers powerful performance and flexible configurations.
PowerEdge R7525 The new Dell EMC PowerEdge R7525 Rack Server is a highly adaptable rack server that delivers powerful performance and flexible configurations. It is ideal for traditional and emerging workloads and applications like:
• Data Analytics
• All Flash SDS
• VDI
|
Features |
Technical Specification |
|
Processor |
Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor |
|
Memory |

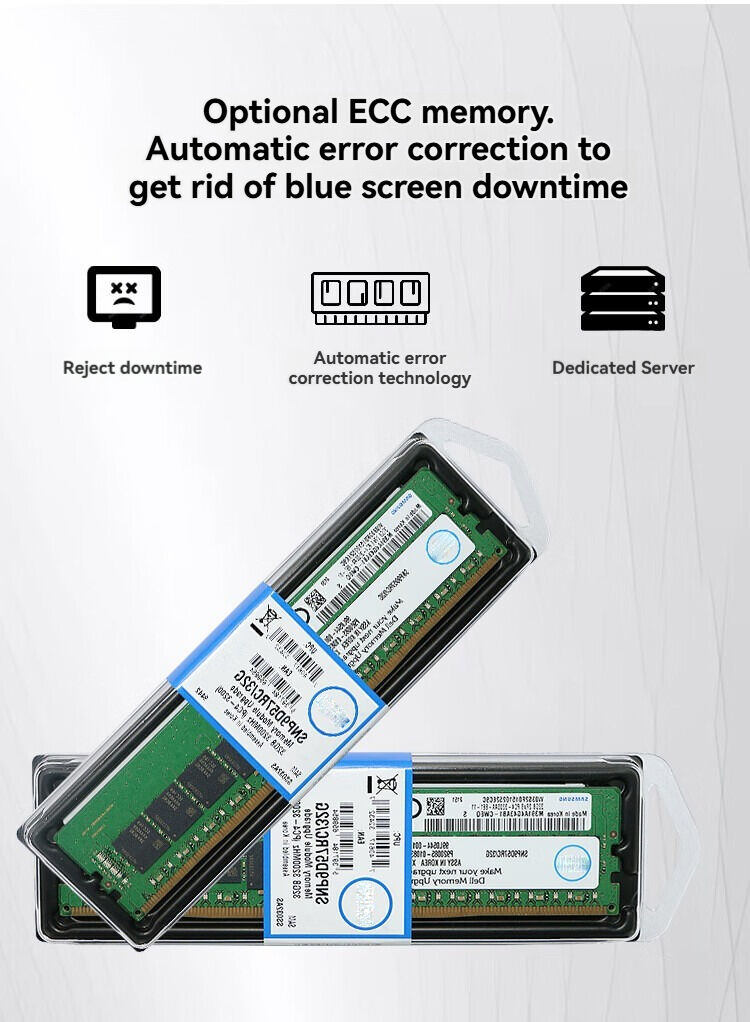

DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S |
|
Controllers |

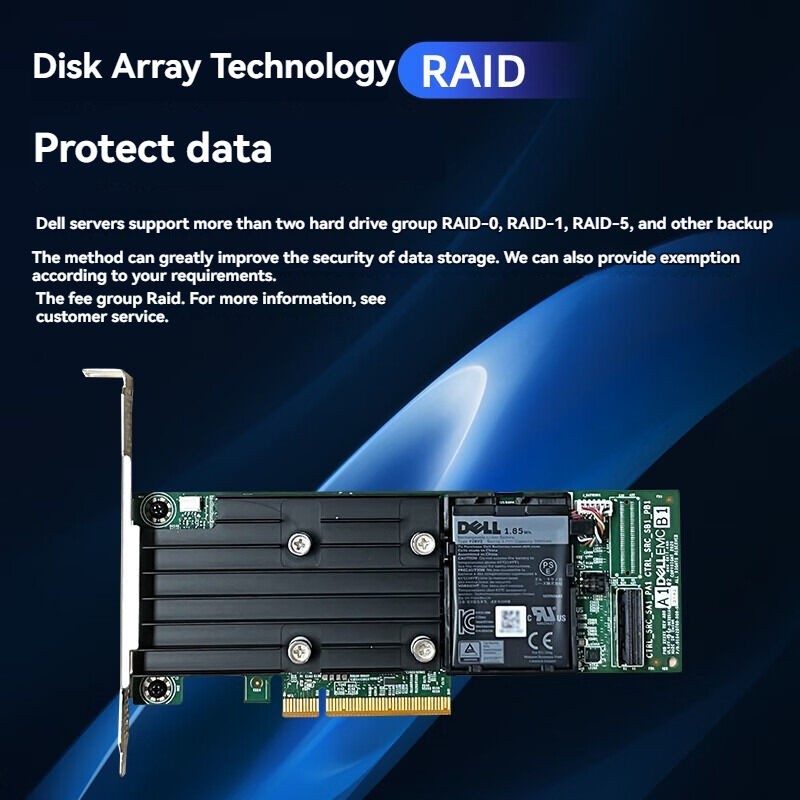

HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA Chipset SATA/SW RAID(S150): Yes PERC11 – H755, H755N |
|
Storage |

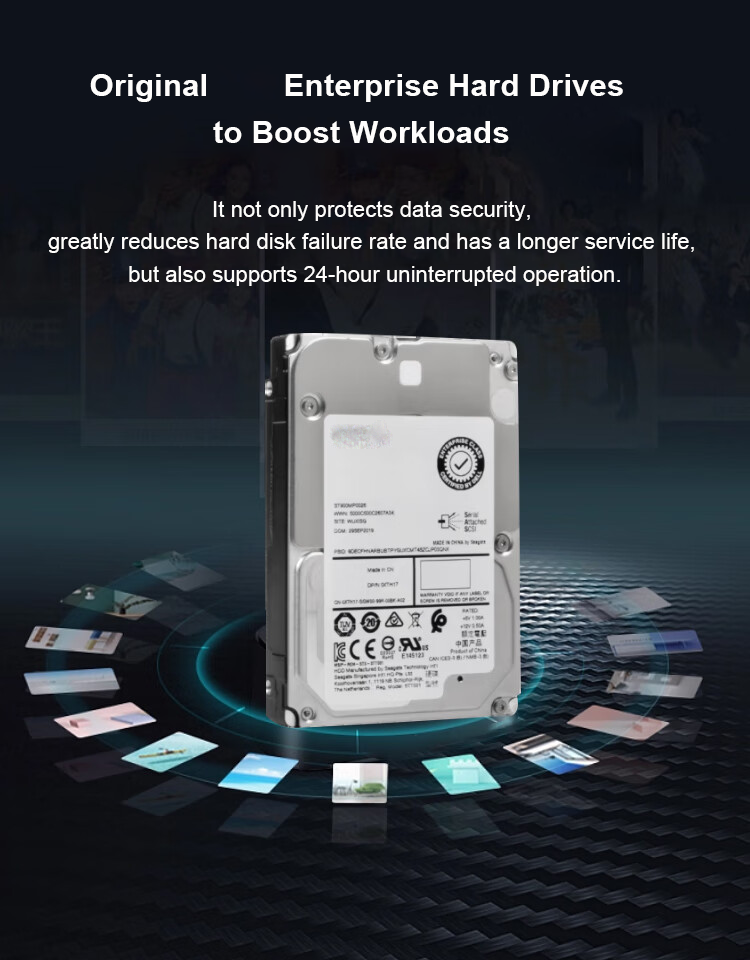

Front Bays: Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD) Up to 12 x 3.5” SAS/SATA (HDD) Up to 16 x 2.5” SAS/SATA (SSD/HDD) The 24 x 2.5” SAS/SATA backplane won’t be available until April block Rear Bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD) |
|
Power Supplies |
800W Platinum 1400W Platinum 2400W Platinum |
|
Fans |
Standard/High Performance/Very High Performance Hot Plug Fans |
|
Dimension |

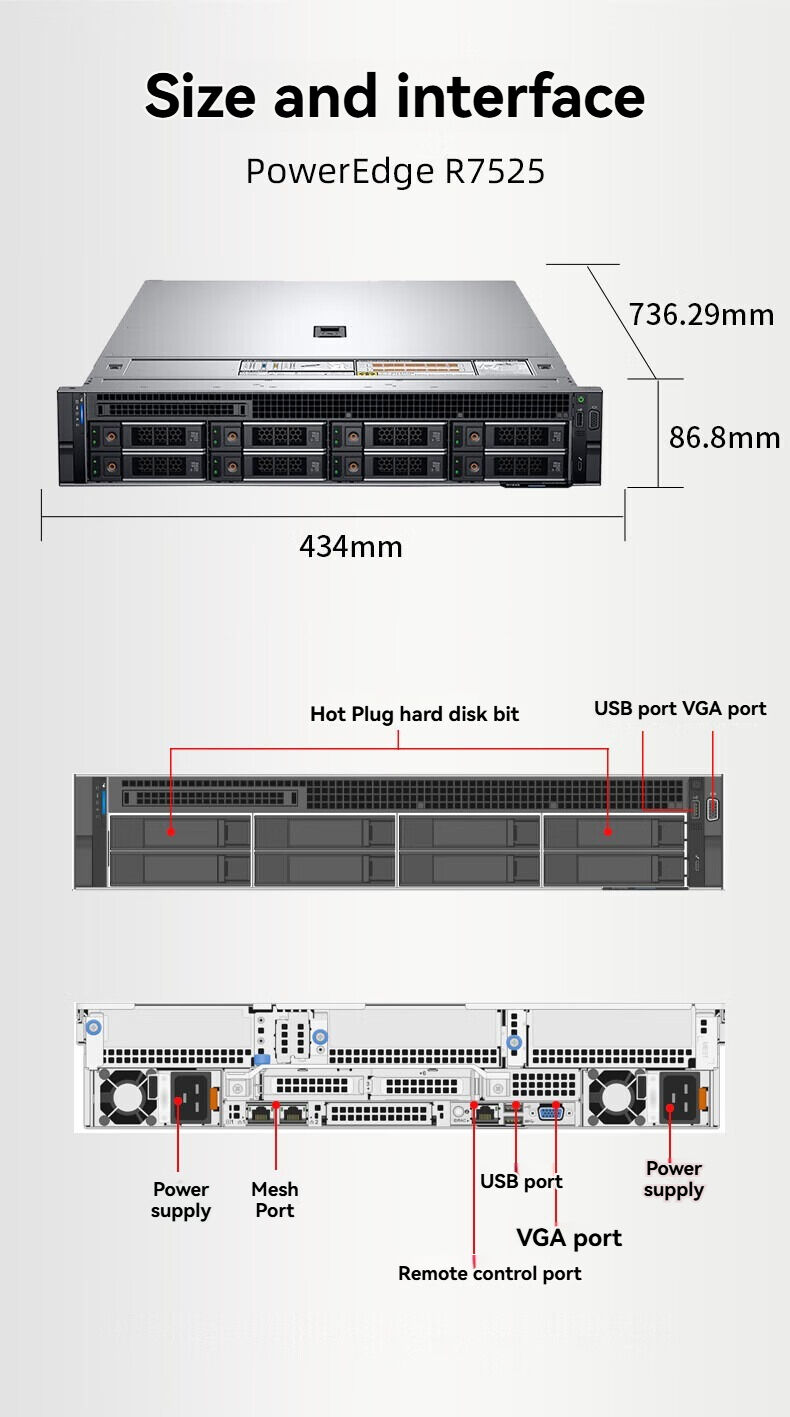

Height: 86.8mm (3.42”) Width: 434.0mm (17.09”) Depth: 736.29mm (28.99”) Weight: 36.3KG (80lb) |
|
Rack Units |
2U Rack Server |
|
Embedded Management |
iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module |
|
Bezel |
Optional LCD bezel or security bezel |
|
OpenManageTM Software |
OpenManage Enterprise OpenManage Enterprise Power Manager OpenManage Mobile |
|
Integrations & Connections |
OpenManage Integrations BMC Truesight Microsoft® System Center RedHat® Ansible® Modules VMware® vCenter
OpenManage Connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI |
|
Security |
Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires OpenManage Enterprise) TPM 1.2/2.0, TCM 2.0 optional AMD Secure Memory Encryption (SME) AMD Secure Encrypted Virtualization (SEV) |
|
Embedded NIC |
2 x 1GE LOM |
|
Networking Options |
OCP x16 Mezz 3.0 |
|
GPU Options |
Up to three double wide 300W or six single wide 75W accelerators |
|
Ports |
Front Ports 1 x Dedicated iDRAC micro-USB 1 x USB 2.0 1 x VGA
Internal Ports 1 x USB 2.0
Rear Ports 1 x USB 2.0 1 x Serial (optional) 1 x USB 3.0 1 x Ethernet 1 x VGA 1 x Power Button |
|
PCIe |
Up to 8 x PCIe Gen4 slots |
|
Operating Systems & Hypervisors |
Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
