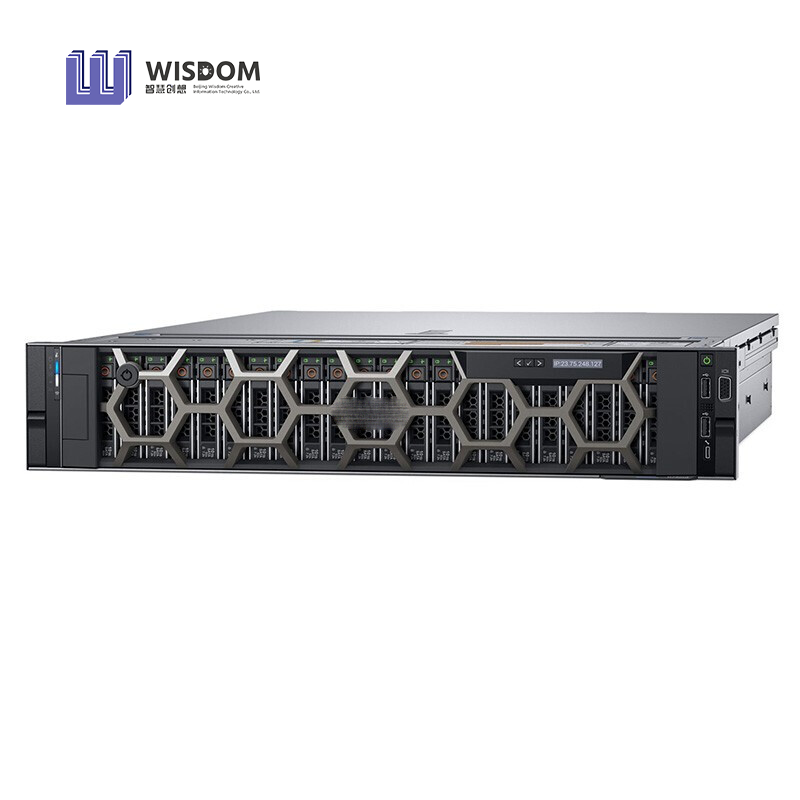

Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server
Dell PowerEdge R760xd 2U Rack Server

Dell PowerEdge R760xd 2U Rack Server

This fiexible 2U server is designed for demanding workloads, including artifcial inteligence, database analysis, and highdensity virtualization, to achieve stronger air-cooled computing power in a smaller size.

Get a Quote Contact us
  • Description
  • Product Display
dell poweredge r760xd 2u rack server-2

+86-18600585382
[email protected]
Inquiry
Processor
Up to two 4th generation Intel Xeon Scalable processors, each with up to 56 cores, and optional Intel ® QuickAssist technology
RAM
• 32 DDR5 DIMM slots, supporting up to 8 TB of RDIMM and speeds up to 4800 MT/s
• Only supports stored ECC DDR5 DIMMs
Drive bays
Front tray:
• Up to 12 3.5-inch SAS/SATA (HDD/SSD) , maximum capacity of 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD),maximum 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 245.76 TB
• Up to 24 2.5-inch SAS/SATA/NVMe (HDD/SSD) , maximum capacity of 368.64 TB
Rear rack:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 30.72 TB
• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD), maximum 61.44 TB
Storage controllers
• Internal controller：PERC H965i、PERC H755、PERC H755N、PERC H355、HBA355i
• Internal guidance：Boot Optimized Storage Subsystem (BOSS-N1)：HWRAID 2 x M.2 NVMe SSD or USB
• External HBA (non RAID)：HBA355e
• Software RAID：S160

Power supplies
• 2800 W titanium grade 200-240 VAC or 240 HVDC, hot swappable redundant
• 2400 W Platinum 100-240 VAC or 240 HVDC, hot swappableredundancy
• 1800 W titanium grade 200-240 VAC or 240 HVDC, hot swappable redundant
• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swappable redundancy
• 1100 W titanium grade 100-240 VAC or 240 HVDC, hot swappable redundant
• 1100 W LVDC-48 to -60 VDC, hot swappable redundant
• 800 W Platinum 100-240 VAC or 240 HVDC, hot swappable redundancy
• 700 W titanium grade 200-240 VAC or 240 HVDC, hot swappable redundant

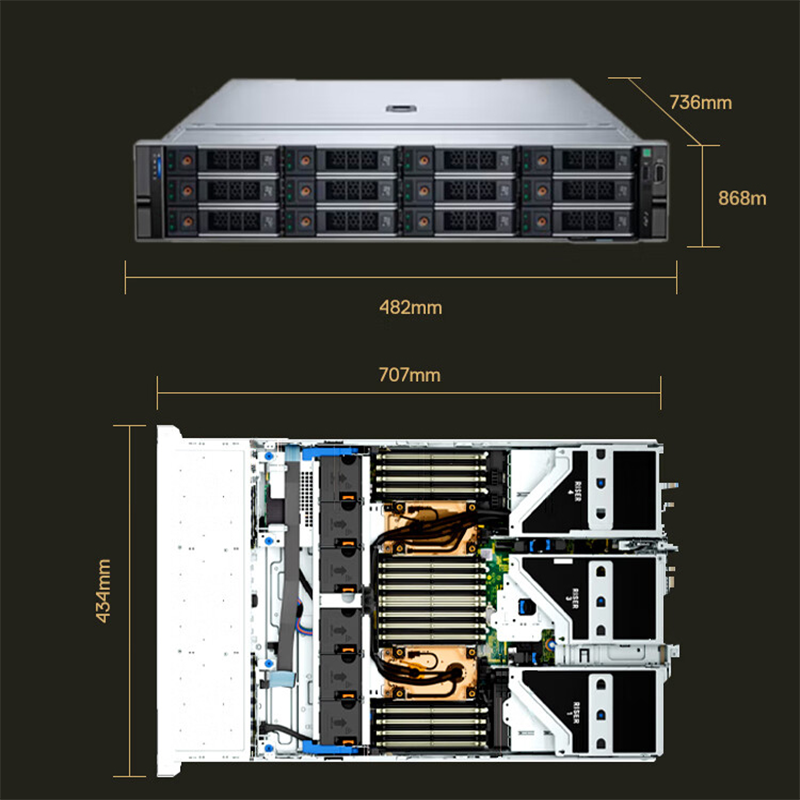

Dimensions
2U Rack Server
Height X Width X Depth
86.8mm X 482.0mm X 772.76mm
Embedded management
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API
• iDRAC Service Module
• Quick Sync 2 wireless module
Bezel
Optional LCD screen panel or safety panel
PCIe
Up to eight PCIe slots
• Slot 1:1 x 8 5.0; Or 1 x8/1 x16 4.0 full height, half length; Or 1 x 16 4.0 full height, total length
• Slot 2: 1 x 8/1 x 16 5.0; Or 1 x8 4.0 full height, half length; Or 1 x 16 5.0 full height, total length
• Slot 3:1 x 16 4.0 half height, half length
• Slot 4: 1 x 8 4.0 full height, half length
• Slot 5: 1 x 8/1 x 16 4.0 full height, half length; Or 1 x 16 4.0 full height, total length
• Slot 6: 1 x 16 4.0 half height, half length
• Slot 7: 1 x 8/1 x 16 5.0; Or 1 x8 4.0 full height, half length
• Slot 7 SNAPI: 1 x 16 5.0 full height, half length
• Slot 8: 1 x 8 5.0; Or 1 x8 4.0 full height, half length
Weight
29.68kg (65.43lbs.)
Operating System
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Warranty
3 years
