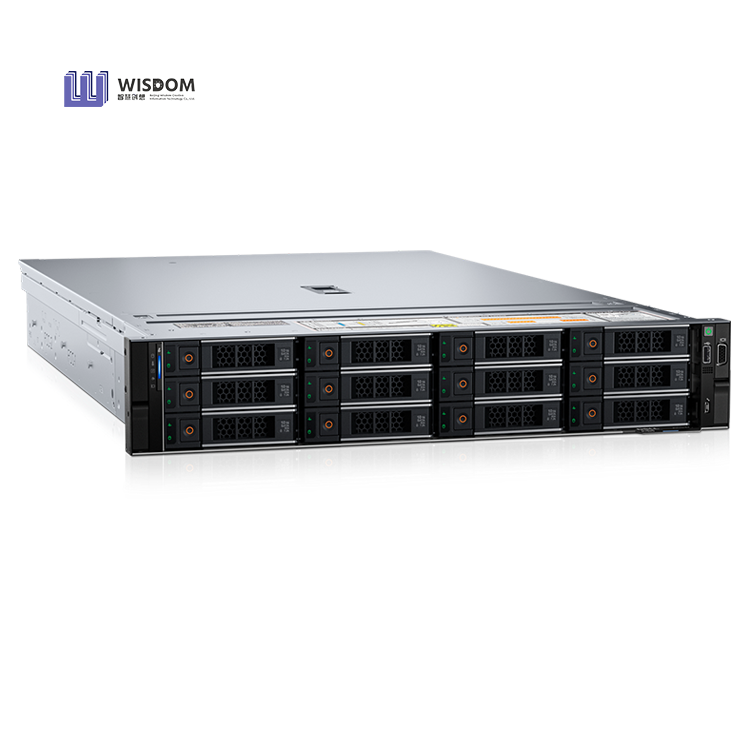

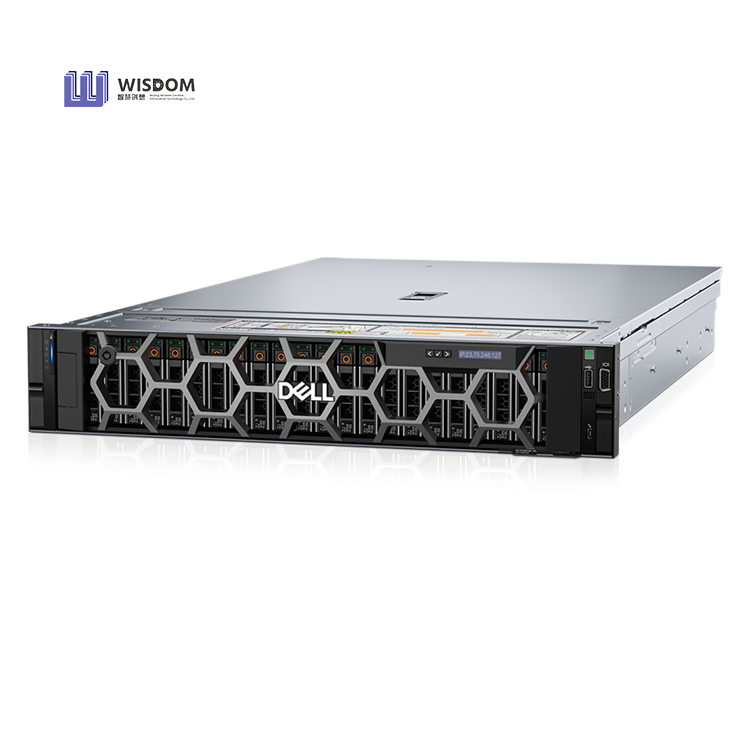

Dell PowerEdge R7625 2U Rack Server

Feature

Technical Specifications

Processor

Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor

Memory

• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s

• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

• External HBA (non-RAID): HBA355e

• Software RAID: S160

Drive Bays

Front bays:

• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB

• Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB • Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

• Up to 4 x E3.S (NVMe Gen5 ) max 30.72 TB

Power Supplies

• 3200 W Titanium 277 VAC or 336 VDC, hot swap redundant • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant

• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

• 1400 W Mixed Mode Platinum 100-240 VAC or 240 HVDC hot swap redundant

• 1400 W Mixed Mode Titanium 277 VAC or 336 HVDC hot swap redundant

• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant

• 1100 W LVDC -48 — -60 VDC, hot swap redundant

• 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant

Cooling Options

• Air cooling

• Optional Direct Liquid Cooling (DLC)

Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans

• High performance Silver (HPR) fans/ High performance Gold (VHP) fans

• Up to 6 hot plug fans

Dimensions

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 772.13 mm (30.39 inches) with bezel

758.29 mm (29.85 inches) without bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9

• iDRAC Direct

• iDRAC RESTful API with Redfish

• iDRAC Service Module

• Quick Sync 2 wireless module

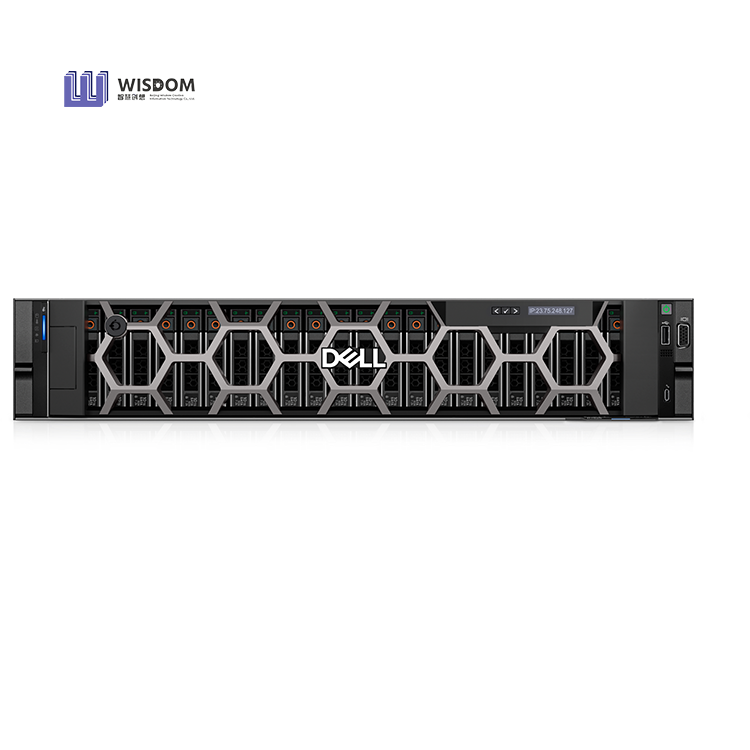

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• CloudIQ for PowerEdge plug in

• OpenManage Enterprise

• OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center

• OpenManage Integration with Windows Admin Center

• OpenManage Power Manager plugin

• OpenManage SupportAssist plugin

• OpenManage Update Manager plugin

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules

• Terraform Providers

• VMware vCenter and vRealize Operations Manager

Security

• AMD Secure Memory Encryption (SME)

• AMD Secure Encrypted Virtualization (SEV)

• Cryptographically signed firmware

• Data at Rest Encryption (SEDs with local or external key mgmt)

• Secure Boot

• Secured Component Verification (Hardware integrity check)

• Secure Erase

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1GbE LOM card (optional)

Network Options

1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system

GPU Options

Up to 2 x 300 W DW or 6 x 75 W SW

Ports

Front Ports

• 1 x iDRAC Direct (Micro-AB USB) port

• 1 x USB 2.0

• 1 x VGA

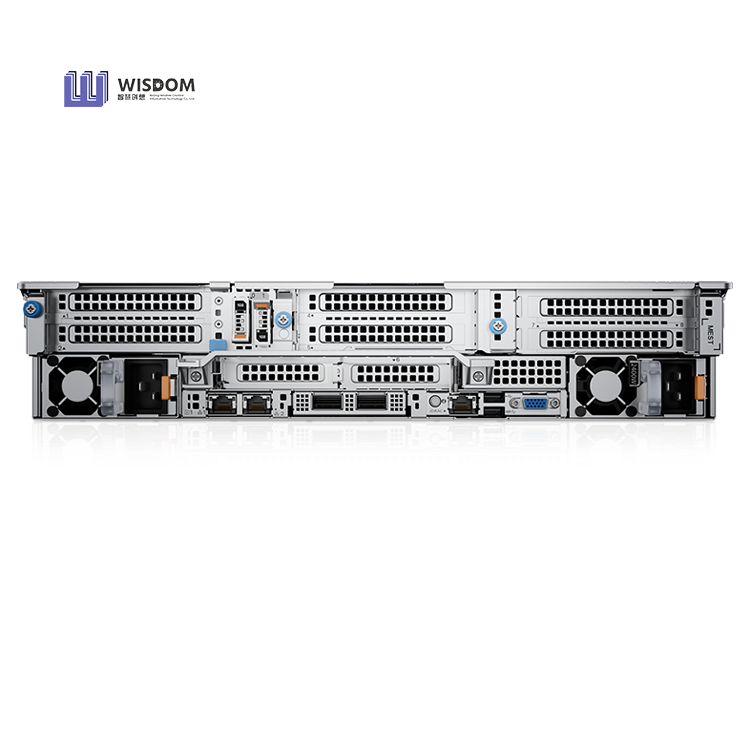

Rear Ports

• 1 x Dedicated iDRAC ethernet port

• 1 x USB 2.0

• 1 x USB 3.0

• 1 x Serial (optional)

• 1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports

• 1 x USB 3.0 (optional)

PCIe

Up to eight PCIe slots:

• Slot 1: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

• Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height Full length

• Slot 3: 1 x16 Gen4 Low profile, Half length

• Slot 4: 1 x8 Gen4 Full height, Half length

• Slot 5: 1 x8 Gen4 Full height, Half length or 1 x16 Gen4 Full height , Full length

• Slot 6: 1 x16 Gen4 Low profile, Half length

• Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length

• Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise Server

• VMware ESXi
