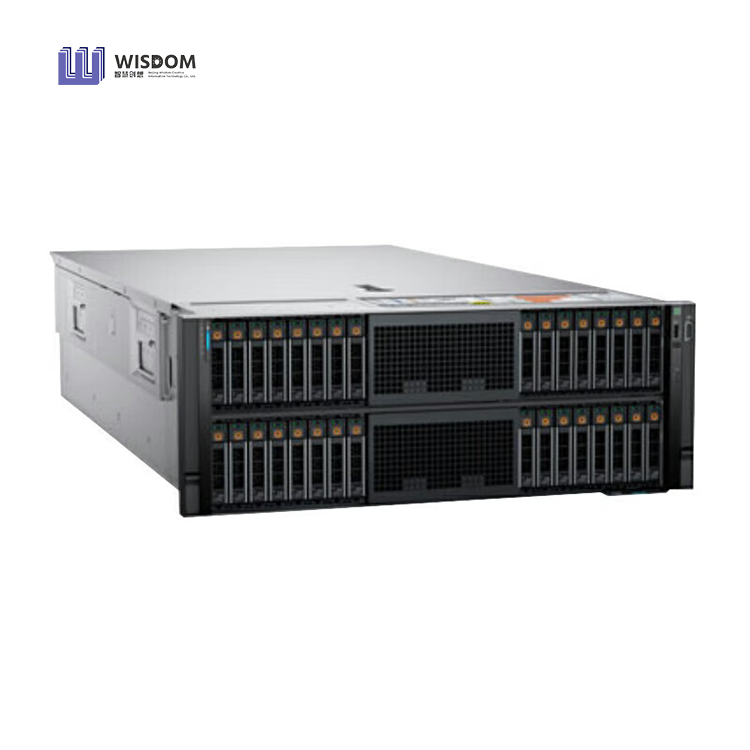

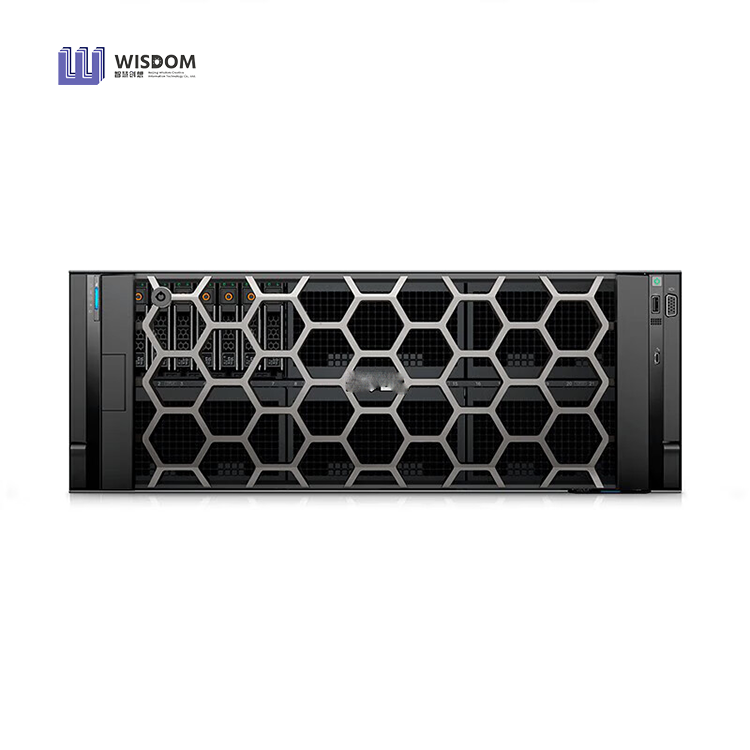

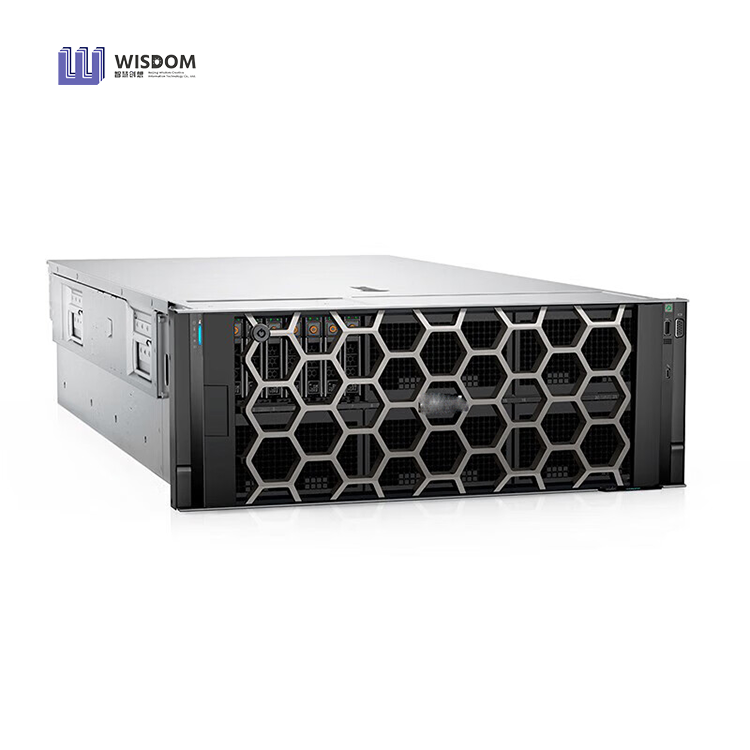

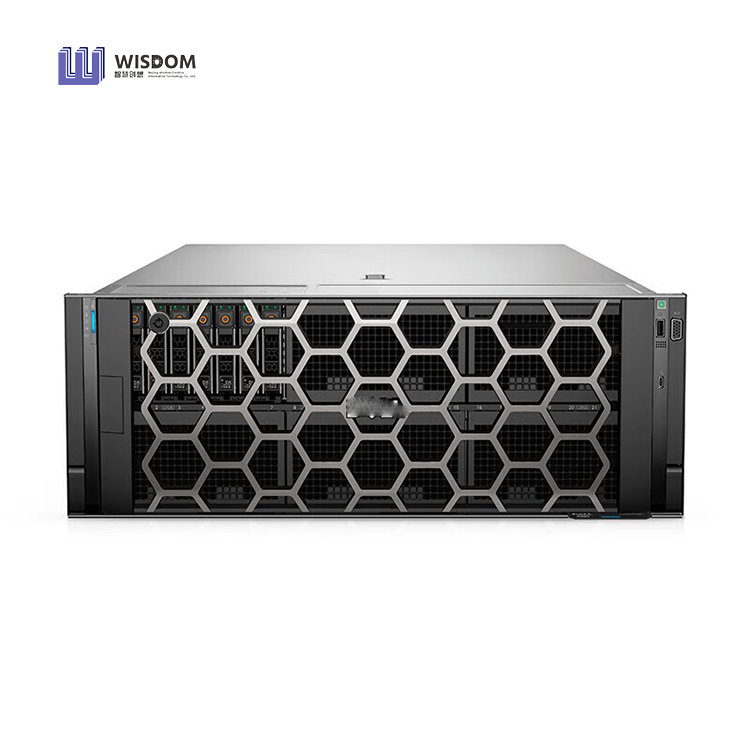

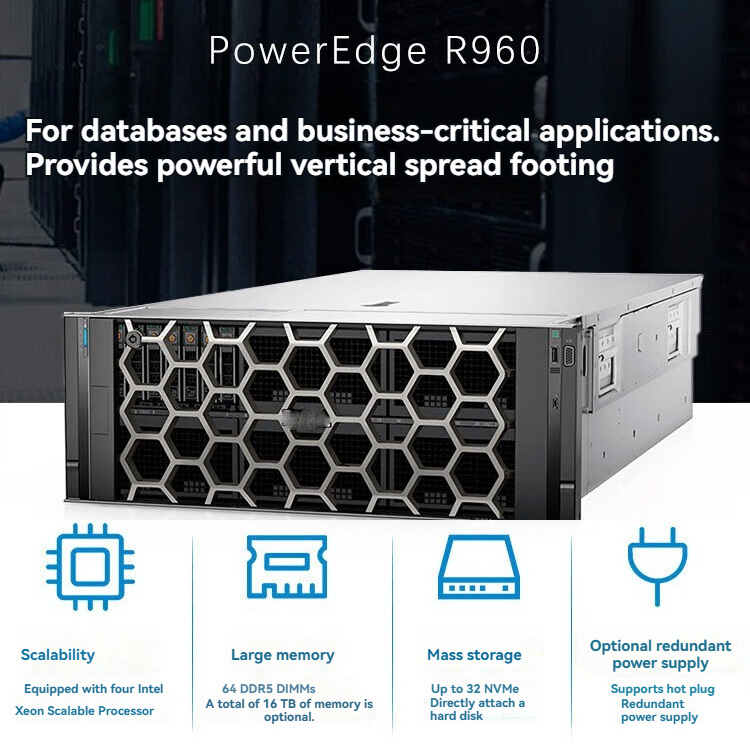

PowerEdge R960
Provide ultimate acceleration capabilities for enterprises, providing mission critical and data driven
operational capabilities from the core to hybrid clouds with scalable computing capabilities
PowerEdge R960
Provide ultimate acceleration capabilities for enterprises, providing mission critical and data driven
operational capabilities from the core to hybrid clouds with scalable computing capabilities
Accelerate achievement
Provides robust performance for large in memory database workloads, enabling faster access to business insights
Optimized for high-density virtualization
With up to 240 CPU cores, it maximizes the operation of virtual machines and virtual desktop infrastructure by simplifying resource usage and reducing total cost of ownership
Scalable flexibility
Vertically scales multiple workload requirements, up to 16TB DDR5, up to 32 hard drives, and 12 PCIe Gen5 slots
Large Memory Database
Utilize the maximum capacity of 64 DIMMs to support in-memory databases
Virtualization/VDI
Production Line Applications
Excellent flexibility and capacity to support the most demanding line of business applications
|
Feature |
R960 SERVER |
|
Processor |
Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor |
|
Memory |
Up to 64 DDR5 RDIMMs NVDIMM: Not supported DIMM speed: up to 4800 MT/s |
|
Storage controllers |
● Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i ● Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB ● External HBA (non-RAID): HBA355e ● Software RAID: S160 |
|
Drive Bays |
Up to 24 2.5 inch SAS/SATA HDDs/SSDs Up to 24 2.5 inch NVMe SSDs |
|
Power Supplies |
1100W, 1400W, 1800W, 2400W, 2800W |
|
High availability |
Hot swap/RAID controlled hard disk, high power air cooling configuration, PSU, BOSS-N1 (2 M.2 MVMe |
|

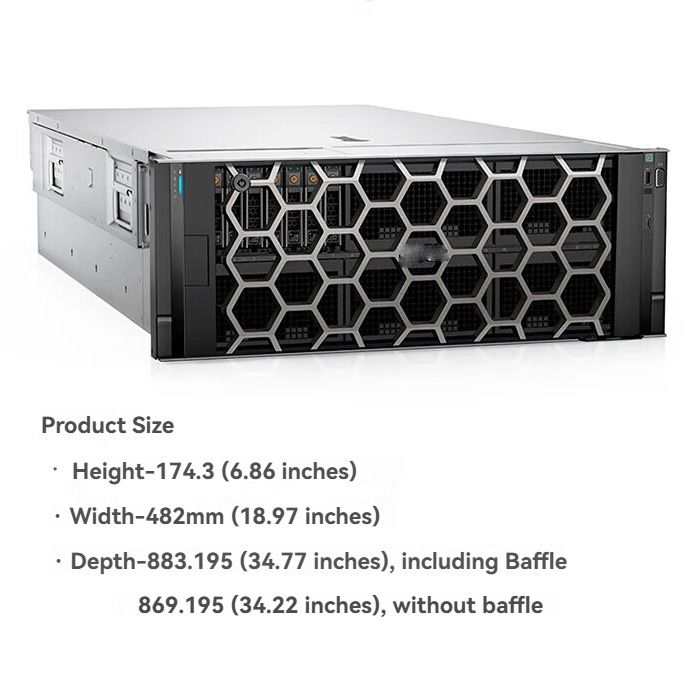

Dimensions |
4U x 434mm x 812mm |
|
Form Factor |
4U rack server |
|
Embedded Management |
Licensing options for iDRAC9 Enterprise Edition and Data Center Edition; OpenManage Enterprise and plug-ins (Power Manager, |
|
GPU Options |
GPU not supported |
|

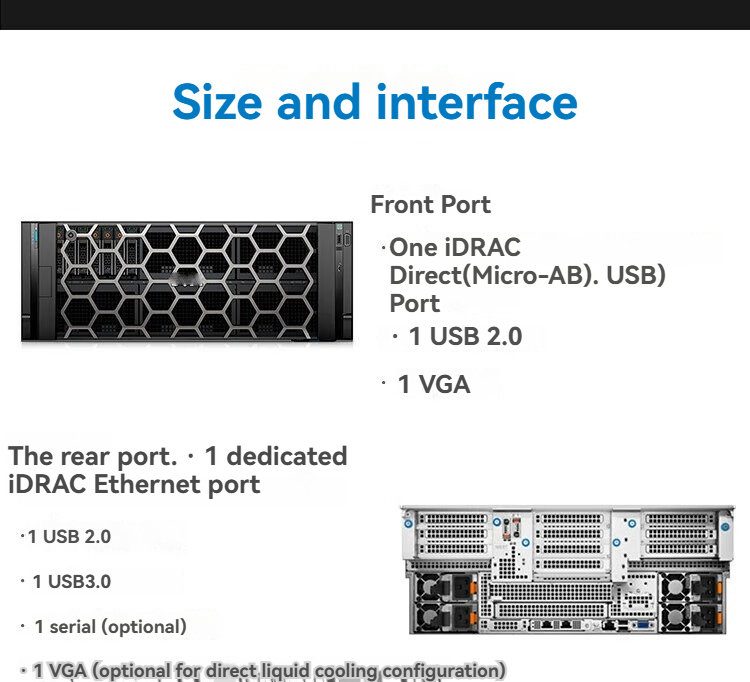

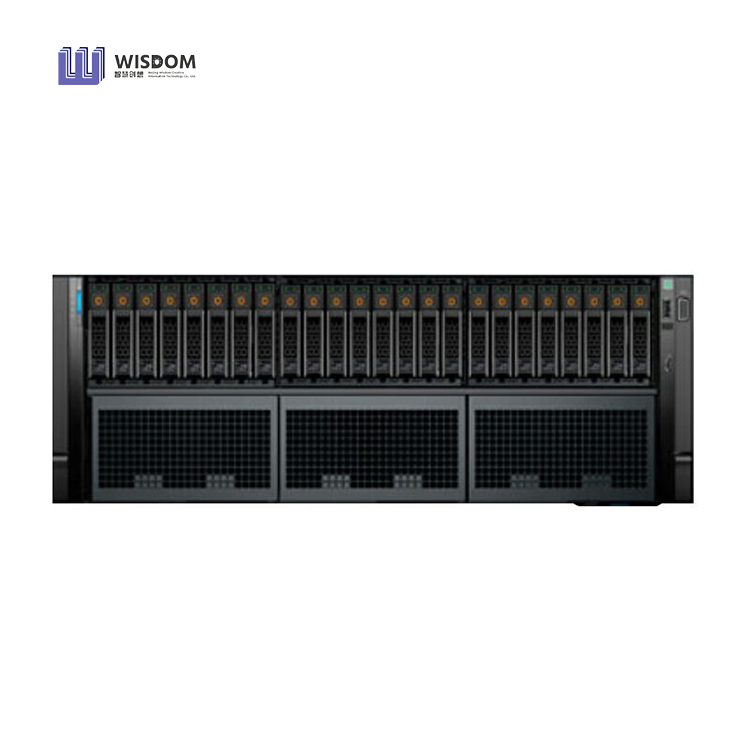

Front Ports |
VGA, 1 USB 2.0, iDRAC Direct mini USB, ID button and LED |
|

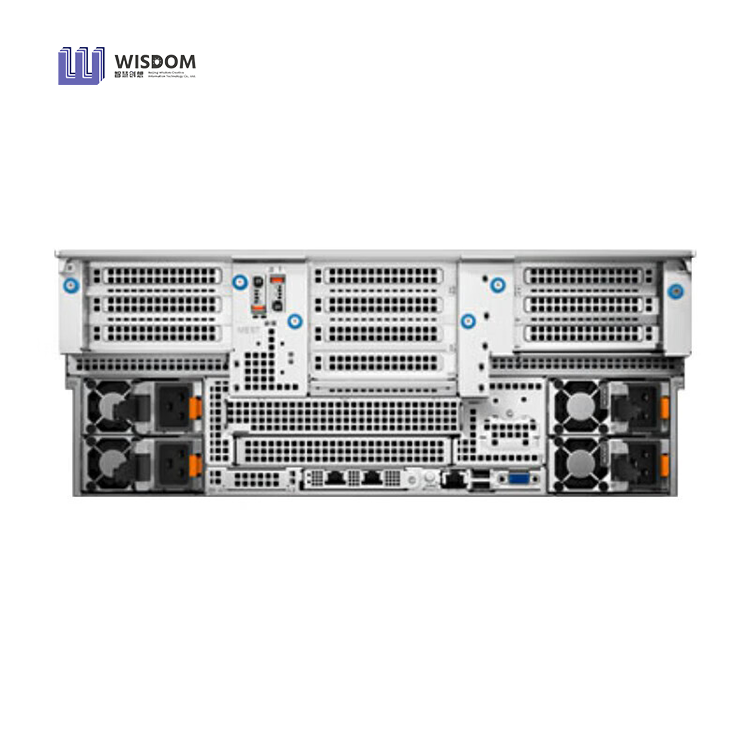

Rear Ports |
VGA, 1 USB 2.0, 1 USB 3.0, management RJ-45, 2 LOM RJ-45, 1 serial port (optional) |
|
Internal Ports |
● 1 x USB 2.0 |
|
PCIe |
Up to 8 PCIe Gen4 or Gen5 slots without SNAPI No CXL |
