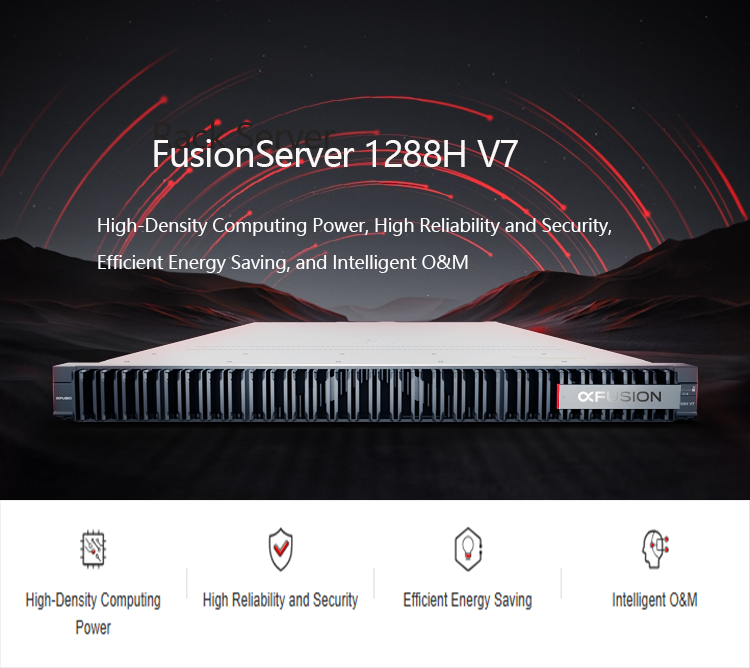

FusionServer 1288H V7 1U 2-socket rack server

• FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, high-performance computing (HPC), enterprise or telecom service applications, and other complex workloads.

• 1288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Description
Product Parameters

fusionserver 1288h v7 1u 2 socket rack server-2

+86-18600585382

[email protected]

Description

High-Density Computing Power

High-Density Computing Power

2 x 385 W CPUs and 32 x DDR5 DIMMs in 1U space

Faster Connectivity for Faster Applications

PCIe 5.0 and 400 Gbit/s NIC interconnection

High Reliability and Security

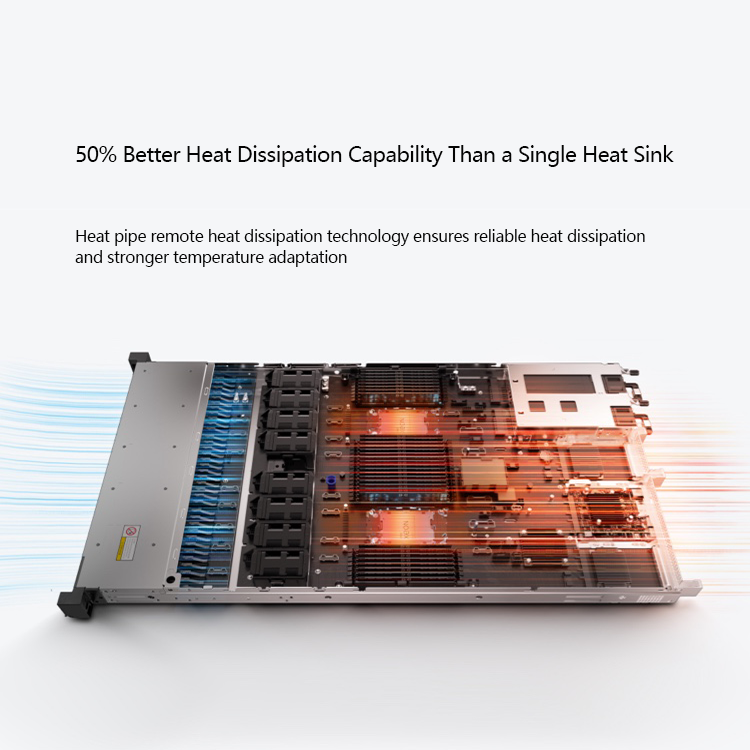

50% Better Heat Dissipation Capability Than a Single Heat Sink

Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation

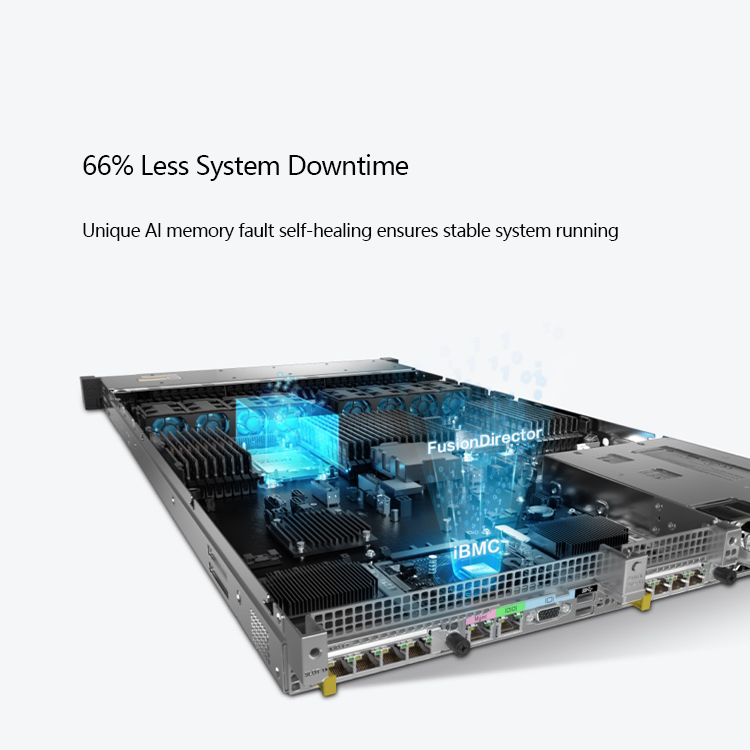

66% Less System Downtime

Unique AI memory fault self-healing ensures stable system running

Efficient Energy Saving

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Saving Energy by up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

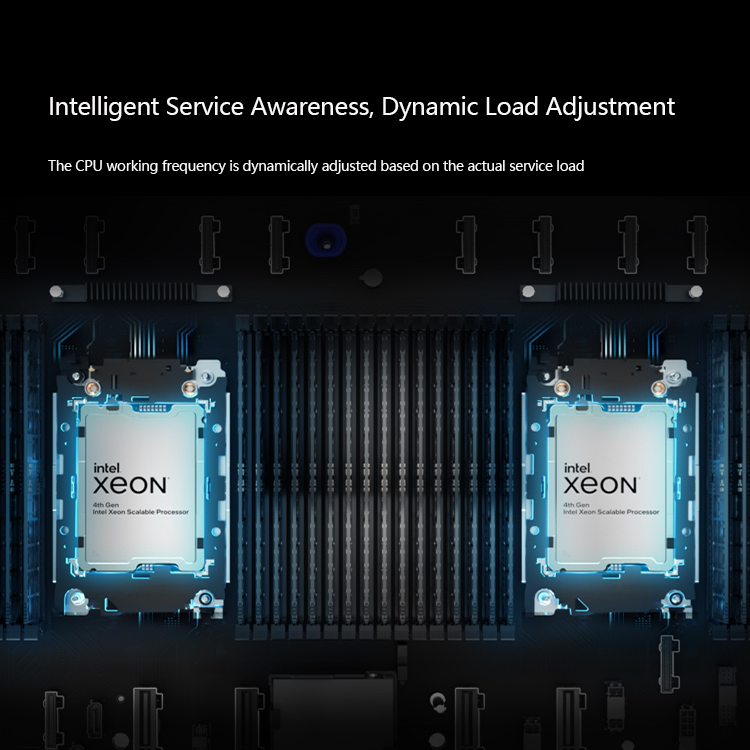

Intelligent Service Awareness, Dynamic Load Adjustment

The CPU working frequency is dynamically adjusted based on the actual service load

Product Parameters

Form factor	1U rack server
Processors	1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage	Supports hot-swappable drives in the following configurations: • 4 x 3.5ʺ SAS/SATA drives/SSDs • 8-12 x 2.5ʺ SAS/SATA drives/SSDs • 2 x M.2 SSDs
RAID support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Provides expansion capability of multiple types of networks Supports OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported
PCIe expansion	Provides 5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots, and 1 slots support PCIe 5.0
Fan Modules	Provides 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
Power Supply	900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management through the lifecycle
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating temperature	5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
