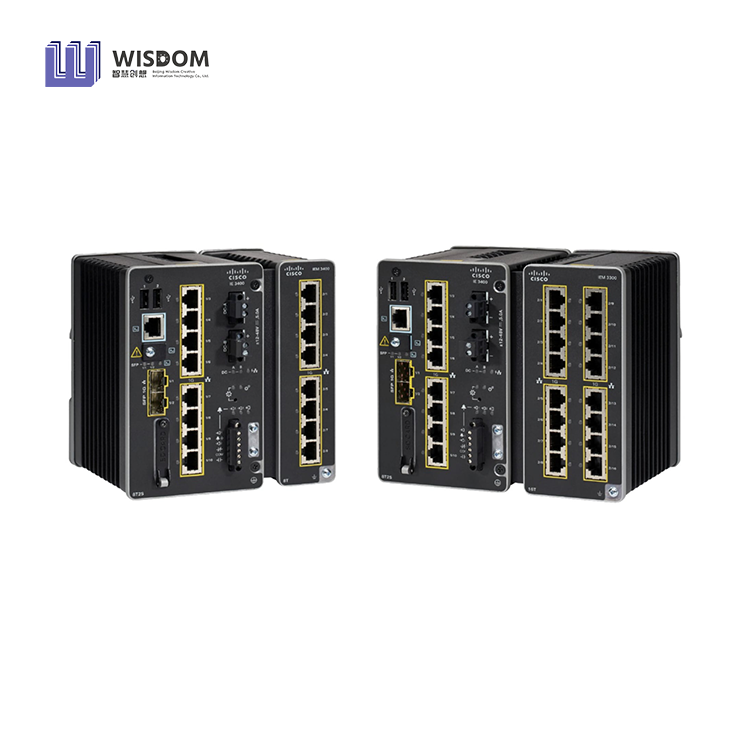

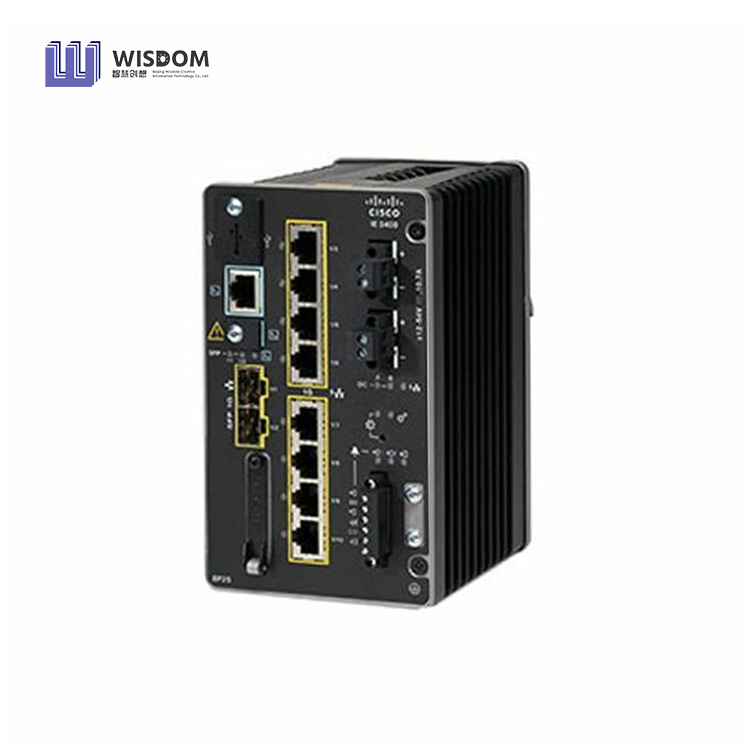

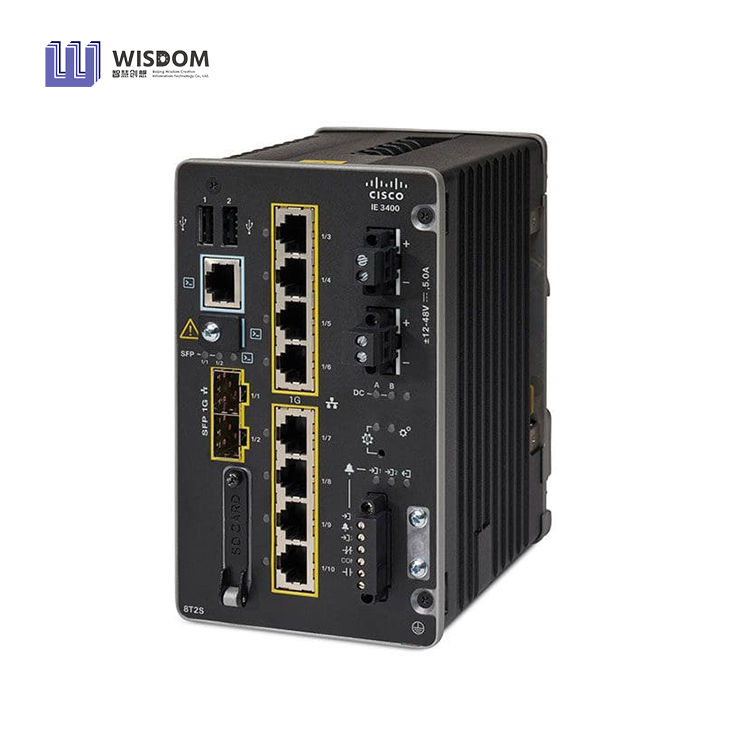

Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch
Cisco Catalyst IE3400 Rugged Series Switch

Cisco Catalyst IE3400 Rugged Series Switch

The Cisco Catalyst® IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form-factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.

Get a Quote Contact us
  • Description
  • Features and benefits
cisco catalyst ie3400 rugged series switch-2

+86-18600585382
[email protected]
Inquiry
The Cisco Catalyst® IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form-factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.

Product overview

The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining,
smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

The IE3400 Series runs Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3400 Rugged Series can be managed with powerful management tools such as Cisco Catalyst Center, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Secure Network Analytics®.

The Cisco Catalyst IE3400 Rugged Series offers edge compute capabilities to run IOx applications, enabling new capabilities in the OT network with no impact on switching performance. Choose between Cisco Cyber Vision to improve visibility of connected industrial assets or provide secure Zero-Trust Network Access (ZTNA) to industrial assets at scale with Secure Equipment Access.

Robust Resiliency enabled by feature such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), Device Level Ring (DLR) and dual-input power supplies.

The IE3400 series (with expansion module) supports power budget of up to 480W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
cisco IE3400 (1).jpg

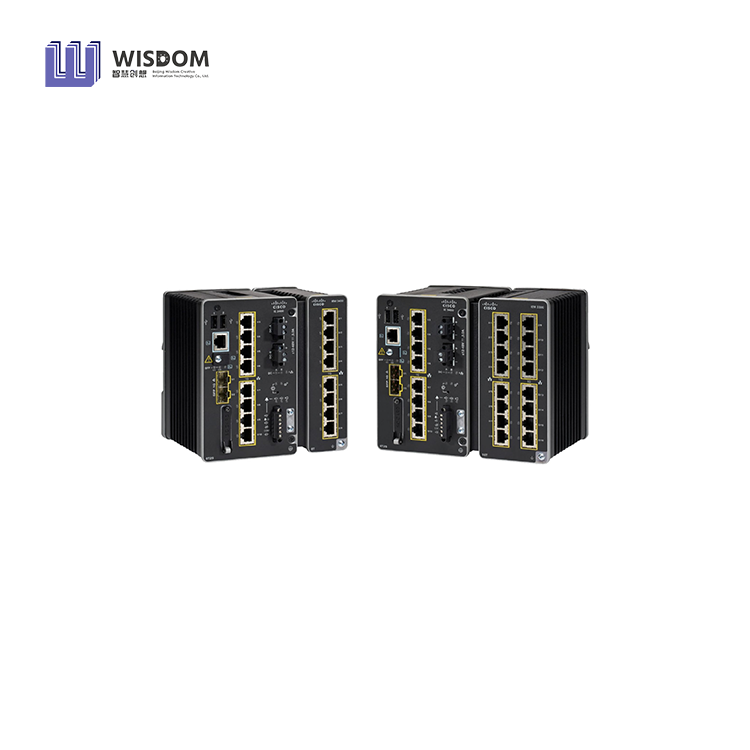

Figure 1.
Cisco Catalyst IE3400 Rugged Series

Table 1. IE3400 Features and benefits

Feature
Benefit
Robust industrial design
● Built for harsh environments and temperature ranges (-40°C to +75°C)
● Fanless, convection-cooled with no moving parts for extended durability
● Hardened for vibration, shock and surge, and electrical noise immunity
● Complies with multi-industry specifications for automation, ITS, and substation environments
● Improves uptime, performance, and safety of industrial systems and equipment
● Covers a wide range of Power over Ethernet (PoE) application requirements
● Alarm I/O for monitoring and signaling to external equipment
Full Gigabit Ethernet interfaces
● Provides secure access for new high-speed applications in the industrial space
● Packs up to 10 ports of GE - 2x1 Gigabit Small Form-Factor Pluggable (SFP) uplinks plus 8x1 Gigabit Copper or PoE+ RJ45
downlinks in a small form-factor base system
● Expandable to 26 ports of GE by attaching one of 10 compatible modules (copper, fiber options)
● Connects high-speed wireless access points (802.11n, 802.11ac)
● Enables High-Definition (HD) IP cameras and Programmable Logic Controllers (PLC)
● Supports delay-sensitive applications and time-sensitive networks
● Delivers multiple rings and redundant ring topology for new network configurations
● Extends geographical scalability where longer-distance connectivity is required
High-density industrial Power over Ethernet (PoE)
● Supports up to 24 PoE/PoE+ ports or up to 8 PoE/PoE+ Ports and 4 “802.3bt type 4” Ports with the 2.5G expansion module [System
Power budget - 480W]
● Controls costs by limiting wiring, distribution panels, and circuit breakers
● Reduces equipment needs, thus requiring less space and reducing heat dissipation
● Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points
User-friendly WEB-based UI (WebUI)
● Allows for easy configuration and monitoring
● Eliminates the need for more complex terminal emulation programs
● Reduces the cost of deployment
SwapDrive zero-configuration replacement
● True zero-configuration and simple switch replacement in case of a failure
● No networking expertise required
● Helps ensure fast recovery
Full Flexible NetFlow (FNF)
● Provides enhanced flow and threat visibility
● Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security
incident detection
Advanced Data plane features
● Parallel redundancy protocol (PRP) 1
● Advanced Security with SGT/SGACL
IPv6 Ready Logo
● IPv6 Ready Logo Certified

1Parallel Redundancy Protocol (PRP) is available on IE3400 base switch on select ports only (Gig1/1 - Gig1/4). Single instance of PRP is supported.


Products overview

Table 2. Product feature sets
Product family
Platforms supported
Cisco IOS Software images (feature sets) supported
IE3400
IE3400
Network Essentials1, Network Advantage1

1The Hardware PID with “-E” suffix is Network Essentials and with “-A” suffix is Network Advantage. Network Advantage License includes all Network Essentials Features.


Product specifications
Table 3 highlights the hardware configuration for Cisco Catalyst IE3400 Rugged Series switches and the supported modules with these switches.

Table 3. IE3400 Hardware configurations (incl. IE3400 and IE3300 modules)
Product number*
Total ports
10/100/1000 RJ45 Copper ports
100/1000 SFP ports
1GE/2.5G RJ45 Copper ports
Software license (Default)**
PoE/
PoE (+) budget
IE-3400-8T2S-E
10
8
2
N.A.
Network Essentials
N.A.
IE-3400-8T2S-A
10
8
2
N.A.
Network Advantage
N.A.
IE-3400-8P2S-E
10
8
2
N.A.
Network Essentials
240W (base), 480W (with expansion module)
IE-3400-8P2S-A
10
8
2
N.A.
Network Advantage
240W (base), 480W (with expansion module)
IEM-3400-8T=
8
8
N.A.
N.A.
N.A.
N.A.
IEM-3400-8S=
8
N.A.
8
N.A.
N.A.
N.A.
IEM-3400-8P=
8
8
N.A.
N.A.
N.A.
Supported with IE3400 PoE base modules only to provide a total PoE budget of 480W
IEM-3300-8P=
8
8
N.A.
N.A.
N.A.
Supported with IE3400 PoE base modules to provide a total PoE budget of 480W
IEM-3300-16P=
16
16
N.A.
N.A.
N.A.
Supported IE3400 PoE base modules to provide a total PoE budget of 480W
IEM-3300-8S=
8
N.A.
8
N.A.
N.A.
N.A.
IEM-3300-8T=
8
8
N.A.
N.A.
N.A.
N.A.
IEM-3300-16T=
16
16
N.A.
N.A.
N.A.
N.A.
IEM-3300-6T2S=
8
6
2
N.A.
N.A.
N.A.
IEM-3300-14T2S=
16
14
2
N.A.
N.A.
N.A.
IEM-3300-4MU=
4
N.A.
N.A.
4
N.A.
Supported IE3400 PoE base modules to provide a total PoE budget of 480W

*PoE modules can only be plugged with PoE base switch. IE3300 expansion modules can also be plugged with IE3400 base switch.However, this combination prevents support for advanced security feature such as SGT/SGACL on the IE3400 base switch.


**Network Advantage License includes all Network Essentials features.
Table 4 highlights the hardware specifications for Cisco Catalyst IE3400 Rugged Series switches.

Table 4. IE3400 hardware Specifications
Hardware specifications
Cisco IE-3400-8T2S-E/ - A
Cisco IE-3400-8P2S-E/ - A
PoE power budget
Not applicable
480W1(including expansion module)
Removable storage
USB2,3, SD card2
USB2,3, SD card2
Alarms
2 alarms in, 1 alarm out
2 alarms in, 1 alarm out
Console ports
1 RS-232 (via RJ-45), 1 USB Mini Type B
1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputs
Dual DC power input
Dual DC power input

1In order to achieve 480W power budget, the minimum power requirements as specified in Table 8 for the switch need to be considered when selecting the power supply.


2The USB and SD card are optional and are not shipped by default with the switch.

3USB 2.0 to load system images and set configurations
cisco IE3400 (4).png
Figure 2. Expansion modules
Table 5 highlights the hardware configuration for Cisco Catalyst IE3400 Rugged Series modules.
Table 5. Hardware configuration for Cisco Catalyst IE3300 and IE3400 Rugged Series modules
Product ID
Total ports on expansion module
Copper (RJ45)
PoE/PoE+
SFP
Copper (RJ45)
1GE/2.5G (with up to 802.3bt type 4 PoE)
Total system ports (including expansion module)
IEM-3400-8T=
8
8
-
-
-
18
IEM-3400-8S=
8
-
-
8
-
18
IEM-3400-8P=
8
-
8
-
-
18
IEM-3300-8P=
8
-
8
-
-
18
IEM-3300-16P=
16
-
16
-
-
26
IEM-3300-8S=
8
-
-
8
-
18
IEM-3300-8T=
8
8
-
-
-
18
IEM-3300-16T=
16
16
-
-
-
26
IEM-3300-6T2S=
8
6
-
2
-
18
IEM-3300-14T2S=
16
14
-
2
-
26
IEM-3300-4MU=1
4
-
-
-
4
14

1Please refer to the conditions for using IEEE 802.3bt type 4 standard power in the Hardware Installation Guide

Table 6 highlights the physical configuration for Cisco Catalyst IE3400 Rugged Series switches and modules.
Table 6. IE3400 physical configurations
Product ID
Dimensions (H x W x D)
Weight
Mounting
IE-3400-8T2S-E
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
3.8 lbs
1.7 Kg
DIN rail
IE-3400-8T2S-A
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
3.8 lbs
1.7 Kg
DIN rail
IE-3400-8P2S-E
6 in. X 4.4 in. X 5.3 in.
15.2 cm. x 11.2 cm. x 13.5cm
5.0 lbs
2.3 Kg
DIN rail
IE-3400-8P2S-A
6 in. X 4.4 in. X 5.3 in.
15.2 cm. x 11.2 cm. x 13.5cm
5.0 lbs
2.3 Kg
DIN rail
IEM-3300-8T=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3300-8S=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3300-16T=
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
2.7 lbs
1.2 Kg
DIN rail
IEM-3300-6T2S=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3300-14T2S=
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
2.7 lbs
1.2 Kg
DIN rail
IEM-3300-8P=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3300-16P=
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
2.7 lbs
1.2 Kg
DIN rail
IEM-3400-8T=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3400-8S=
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
3.6 lbs
1.6 Kg
DIN rail
IEM-3400-8P=
6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm
2.0 lbs
0.9 Kg
DIN rail
IEM-3300-4MU=
6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm
3.0 lbs
1.4 Kg
DIN rail

System dimensions

Front view <IE3400 Non-PoE>
cisco IE3400 (5).png
Front view <IE3400 PoE>
cisco IE3400 (6).png
Module dimensions –Front view
cisco IE3400 (2).jpg
Single wide expansion modules add 2 inches to the system width effectively.
Double wide expansion modules add 3 inches to the system width effectively.
Top view
cisco IE3400 (7).png
