System Architecture
|
|
Fibre Channel Ports
|

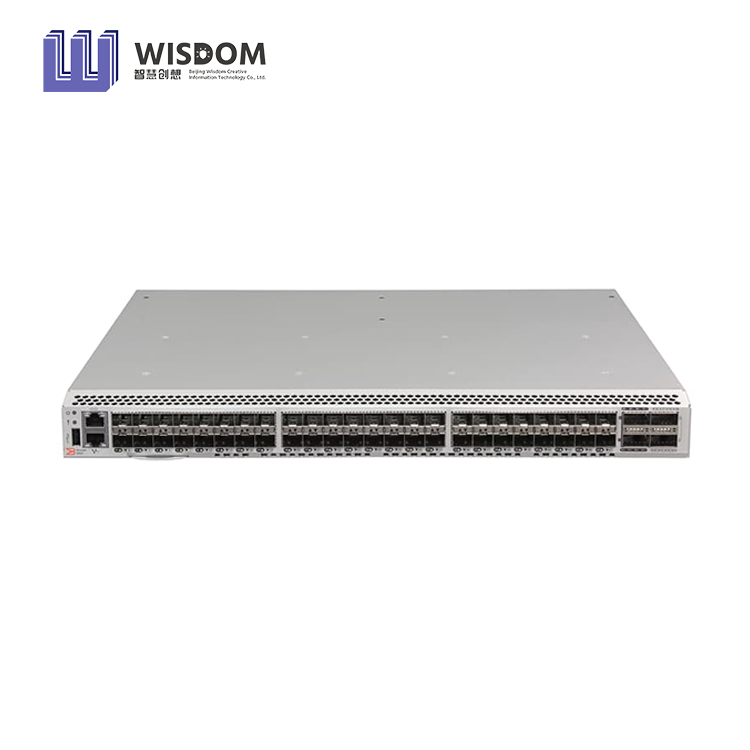

Switch mode (default): Minimum of 24 ports and maximum of 64 ports configuration. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD, providing 16-port increments through a Q-Flex license; E_Ports, F_Ports, M_Port, D_Ports, EX_Ports.
Brocade Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports
|
|
Scalability
|
Full-fabric architecture with a maximum of 239 switches
|
|
Certified Maximum
|
6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
|
|
Performance
|
Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. 10G optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4 Gb/s speeds on the QSFP ports with Brocade FOS v8.2.0.
|
|
ISL Trunking
|
Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
|
|
Aggregate Bandwidth
|
2Tb/s
|
|
Maximum Fabric Latency
|
Latency for locally switched ports is
|
|
Maximum Frame Size
|
2,112-byte payload
|
|
Frame Buffers
|
15,360 dynamically allocated
|
|
Classes of Service
|
Class 2, Class 3, Class F (inter-switch frames)
|
|
Port Types
|
D_Port (ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, M_Port, AE_Port; optional port-type control.
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port.
|
|
Data Traffic Types
|
Fabric switches supporting unicast
|
|
Media Types
|
32G FC SFP+ LC connector: SWL
16G FC SFP+ LC connector: SWL, LWL, ELWL
10G FC SFP+ LC connector: SWL, LWL
4x32G FC QSFP+ MPO connector: SWL
4x32G FC QSFP+ SMF LC connector: 2 km (fixed at 4x32G only)
4x16G FC QSFP+ MPO connector: SWL
All Brocade transceivers are PC/UPC compatible.
|
|
USB
|
One USB port for system log file downloads or firmware upgrades
|
|
Fabric Services
|
BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; Flow Vision; F_Port Trunking; FSPF; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State
Change Notification (RSCN); Slow Drain Device Quarantine (SDDQ); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch, Logical Fabric); VMID+ and AppServer.
|
|
Extension
|
Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256 encryption on FC ISLs [E_Port]); integrated optional 10G Fibre Channel for DWDM MAN connectivity.
|
|
Management
|
|
Management
|
HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav
Global View; Command Line Interface (CLI); RESTful API; trial licenses for add-on capabilities
|
|
Security
|
DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure Syslog, SFTP, SSH v2, SSL,Switch Binding, Trusted Switch
|
|
Management Access
|
10/100/1000Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (mini-USB), and one USB port.
|
|
Diagnostics
|
Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI);flow mirroring; Forward Error Correction (FEC); frame viewer; IO Insight for SCSI and NVMe monitoring; Monitoring and Alerting Policy Suite (MAPS); non-disruptive daemon restart; optics health monitoring; POST and embedded online/offline diagnostics,including environmental monitoring, FCping, and Pathinfo (FC traceroute); power monitoring; RAStrace logging; Rolling Reboot
Detection (RRD); Syslog/Audit Log; VM Insight.
|
|
Mechanical
|
|
Enclosure
|
Front-to-back airflow; non-port-side exhaust; power from back, 1U
Back-to-front airflow; non-port-side intake; power from back,1U
|
|
Size
|
Width: 440.00 mm (17.32 in.)
Height: 43.90 mm (1.73 in.)
Depth: 355.60 mm (14.00 in.)
|
|
System Weight
|
7.07 kg (15.59 lb) with two power supplies, fans, without transceivers
8.41 kg (18.54 lb) with two power supplies, fans, fully populated with transceivers
|
|
Environment
|
|
Operating Environment
|
Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 8% to 90% (noncondensing)
|
|
Non-operating Environment
|
Temperature: –25°C to 70°C/–13°F to 158°F
Humidity: 8% to 90% (noncondensing)
|
|
Operating Altitude
|
Up to 3000m (9,842 ft)
|
|
Storage Altitude
|
Up to 12 km (39,370 ft)
|
|
Shock
|
Operating: Up to 20G, 6-ms half-sine
Nonoperating: Half-sine, 33G 11 ms, 3/eg axis
|
|
Vibration
|
Operating: 0.5g sine, 0.4 grms random, 5 Hz to 500 Hz
Non-operating: 2.0g sine, 1.1 grms random, 5 Hz to 500 Hz
|
|
Heat Dissipation
|
64 ports at 716 BTU/hr
|
|
Power
|
|

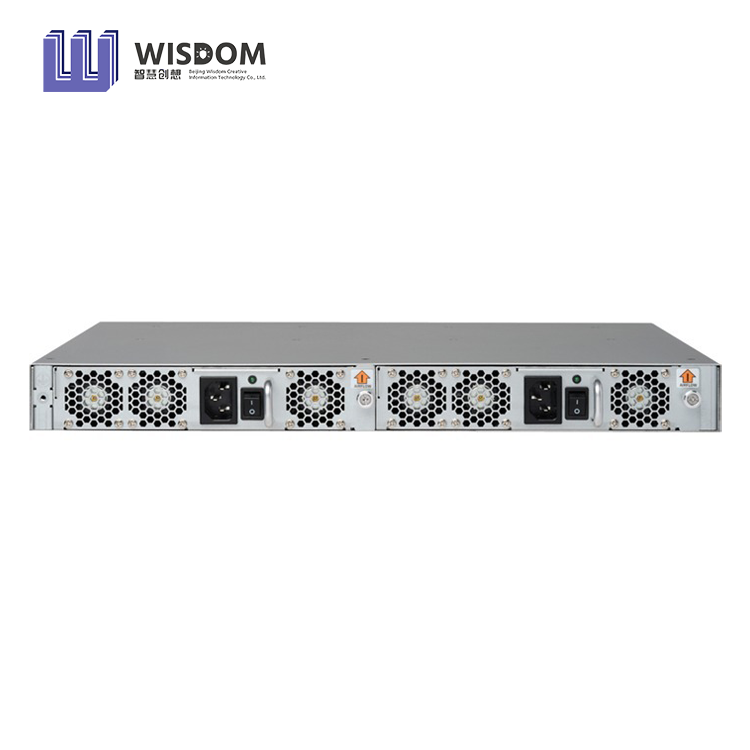

Power Supply
|
Dual, hot-swappable redundant power supplies with integrated system cooling fans, voltage range of 90V to 264V AC. Optional DC power supply with voltage range of 36V to 72V DC.
|
|
AC Input
|
90V to 264V, maximum input current: 3.5A
|
|
AC Input Line Frequency
|
47 Hz to 63 Hz
|
|
AC Power Consumption (System)
|
Maximum 205W with all 64 ports populated with 48×32G SFP+ SWL optics and 4× (4×32G) QSFP SWL optics.
85W for empty chassis with no optics.
|
|
DC Input
|
36–72V, maximum input current: 7.1A (applies to the DC power SKU only).
|
×
