Lenovo ThinkSystem SR650 V4 2U Rack Server

The Len ovo ThinkSystem SR650 V4 is a versatile 2U rack server powered by Intel® Xeon® 6 processors.

  • Description
  • Product Parameters

Versatility Meets Performance

The Len ovo ThinkSystem SR650 V4 is a versatile 2U rack server powered by Intel® Xeon® 6 processors.

Optimized for Enterprise Workloads: Ideal for virtualization, databases, hybrid cloud, and analytics.

Flexible Scalability: Supports up to 32x TruDDR5 RDIMMs, 36x NVMe drives, and 10x PCIe Gen5 slots.

Sustainability and Reliability: Optional Len ovo Neptune® cooling and six nines uptime reliability for reduced costs and
environmental impact.

The SR650 V4 offers scalability, efficiency, and security, delivering exceptional value for enterprises.

AI-Driven Intelligence Meets Performance - Smarter AI Everywhere

Deploying AI requires new skills and systems, with power, space, and cooling needs often leading to co-location or cloud solutions. Len ovo ThinkSystem SR650 V4 with XClarity One enables fast, secure deployment across on-prem, co-located, or cloud infrastructures.

Len ovo’s AI optimized management tool XClarity provides centralized control, remote access, and AI predictive analytics to prevent downtime. It also features SSD failure analysis and enhanced security with federated directory.

Engineered for Sustainability from Design to Disposal

Len ovo ThinkSystem SR650 V4 reduces data center costs and environmental impact while delivering high performance. Its energy-efficient platforms meet ENERGY STAR® standards, enabling up to 3:1 rack consolidation.

Len ovo's Certified Refurbished program extends server life, and over 1 million assets have been recycled. The SR650 V4 features optional Lenovo Neptune® cooling for better thermal efficiency to help meet sustainability goals.

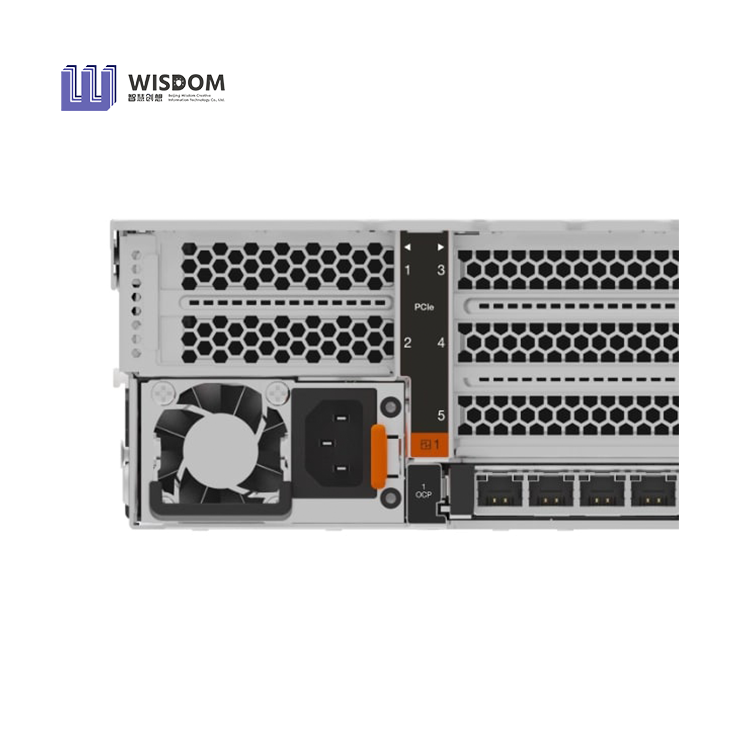

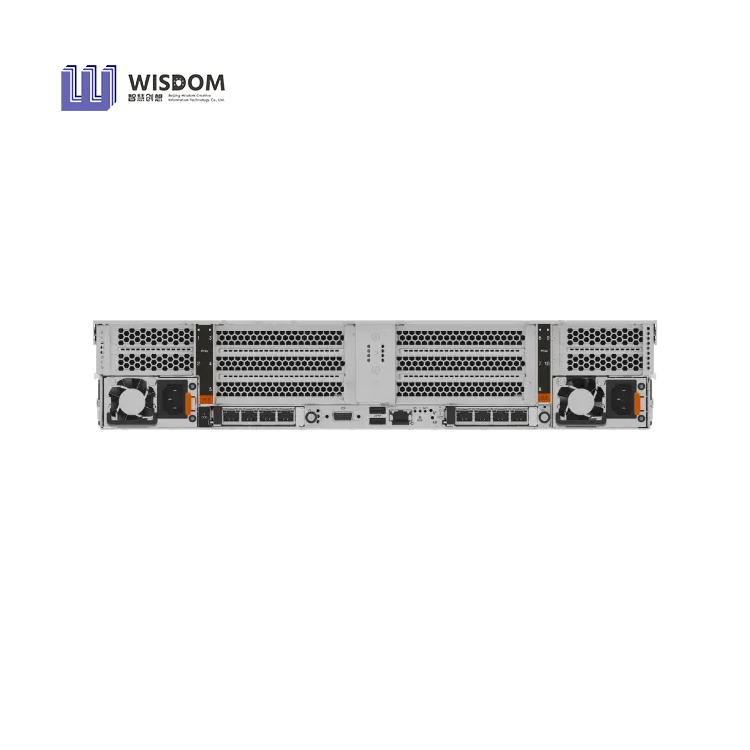

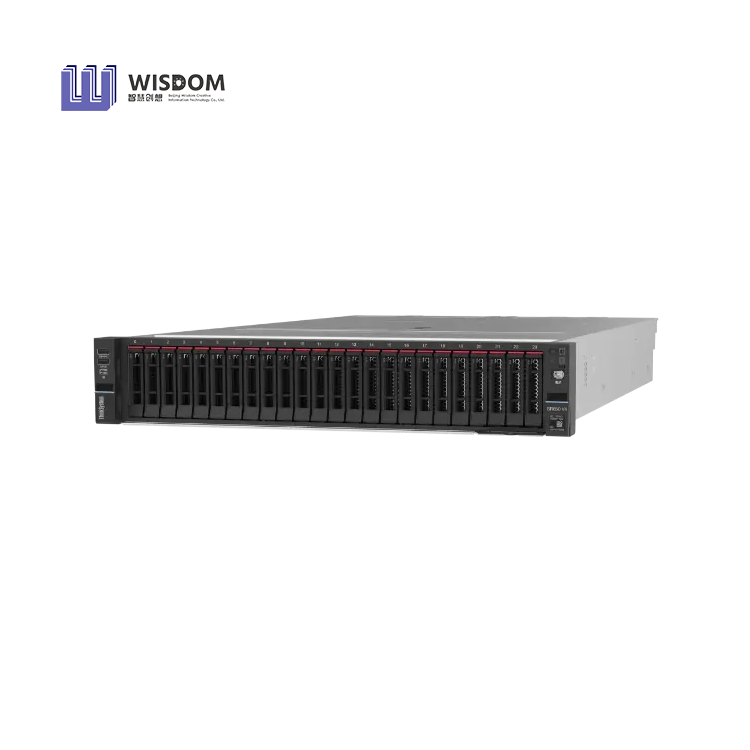

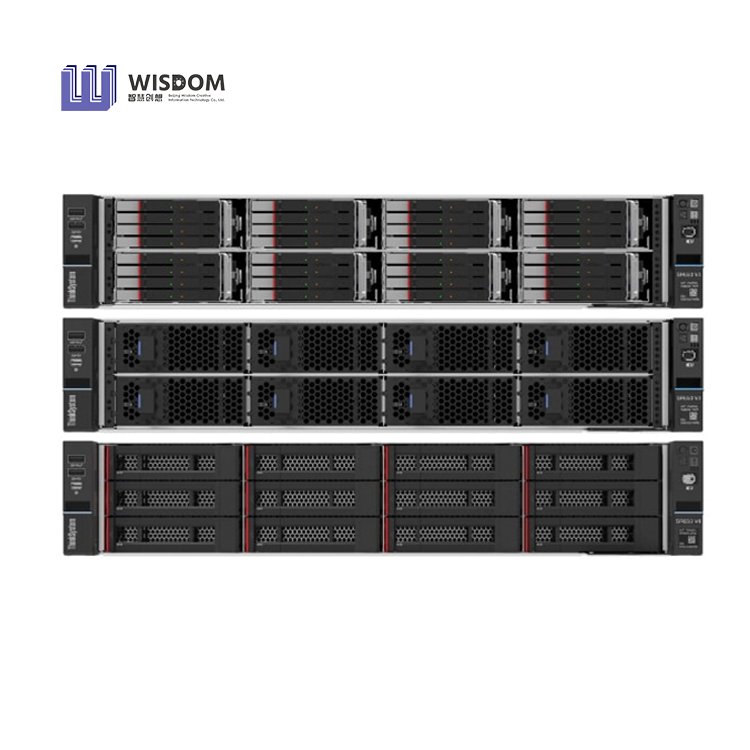

SR650 V4 (1).pngSR650 V4 (4).pngSR650 V4 (7).png

Form Factor/Height

2U rack server

Processors

Up to 2x Intel® Xeon® 6 processors, up to 86 cores and 350W TDP

Drive Bays

* Front: Up to 24x 2.5″ SAS/SATA/NVMe, or 32x E3.S NVMe, or 12x 3.5″ SAS/SATA
* Mid: Up to 8x2.5″ SAS/SATA/NVMe
* Rear: Up to 8x 2.5″ or 4x 3.5″ SAS/SATA/NVMe
* Bootable device: Up to 2x M.2 SATA/NVMe drives with RAID support, optional hot swap
* Supports Direct NVMe, VROC/VMD

Memory

* Supports up to 32x TruDDR5 3DS/RDIMMs with speeds up to 6400MHz; up to 16x TruDDR5 MRDIMMs with speeds up to 8000MHz.
* Maximum capacity up to 8TB

Expansion Slots

* Up to 10x PCIe Gen5 slots
* 2x OCP 3.0 slots

GPUs

Up to 10x single-width GPUs or 2x double-width GPUs

Network Interface

* OCP adapter installed in the OCP 3.0 slot
* Networking PCIe adapters

Ports

Front:
* Optional 2x USB 3.0 with XClarity Mobile support and 1x mini DP
* Optional External diagnostics handset port

Rear:
* 2x USB 3.0 G1
* VGA
* 1GbE RJ-45 dedicated management port
* Optional: 2nd 1GbE management port in OCP slot location
* Optional Serial port

HBA/RAID Support

* VROC for NVMe SW RAID (0,1,5,10)
* Standard and internal PCIe RAID/HBA adapters

Cooling Solution

Lenovo Neptune® Core and Neptune® Air technology

Power

Dual Redundant AC & DC (multiple wattages); Platinum & Titanium efficiency ratings

Systems Management

Lenovo XClarity Controller

OS Support

* Microsoft
* SUSE
* Red Hat
* VMware

Limited Warranty

* 1-year & 3-year customer replaceable unit and onsite service,
* Next business day 9am to 5pm;
* Optional service upgrades
